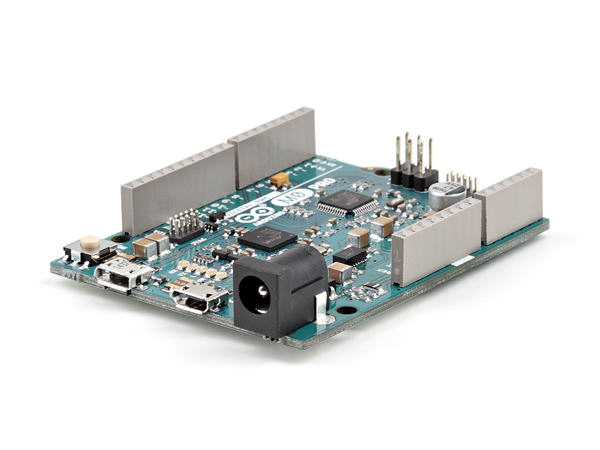

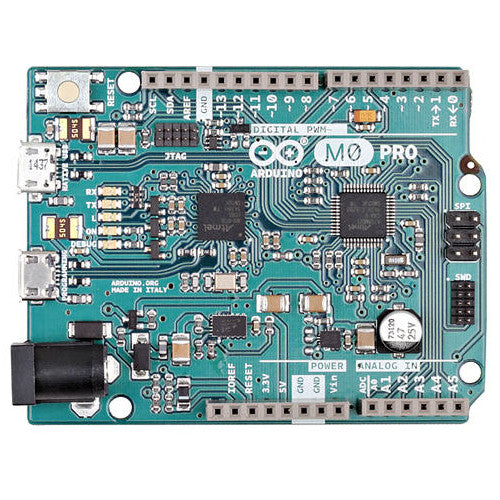

Arduino M0 Pro

Arduino M0 Pro

Regular price €44,90 EUR
Regular price Sale price €44,90 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

With the new Arduino M0 pro board, the more creative individual will have the potential to create one’s most imaginative and new ideas for IoT devices, wearable technologies, high tech automation, wild robotics and other not yet thinkable adventures in the world of makers.
The Arduino M0 pro represents a simple, yet powerful, 32-bit extension of the Arduino UNO platform. The board is powered by Atmel’s SAMD21 MCU, featuring a 32-bit ARM Cortex® M0 core.
With the addition of the M0 board, the Arduino family becomes larger with a new member providing increased performance.
The power of its Atmel’s core gives this board an upgraded flexibility and boosts the scope of projects one can think of and make; moreover, it makes the M0 Pro the ideal educational tool for learning about 32-bit application development.
Atmel’s Embedded Debugger (EDBG), integrated in the board, provides a full debug interface with no need for additional hardware, making debugging much easier. EDBG additionally supports a virtual COM port for device programming and traditional Arduino boot loader functionality uses.

Specification

MicrocontrollerATSAMD21G18, 48pins LQFP
ArchitectureARM Cortex-M0+
Operating Voltage3.3 V
Input Voltage (recommended)from 5 to 12 Volts
Digital I/O Pins20
PWM Digital I/O Pins12
Analog Input Pins6, 12-bit ADC channels
Analog Output Pins1, 10-bit DAC
DC Current per I/O Pin7 mA
Flash Memory256 KB
SRAM32 KB
Clock Speed48 MHz
Power Consumption44 mA
PCB Size53,34 mm x 68,58 mm
Weight22 g
