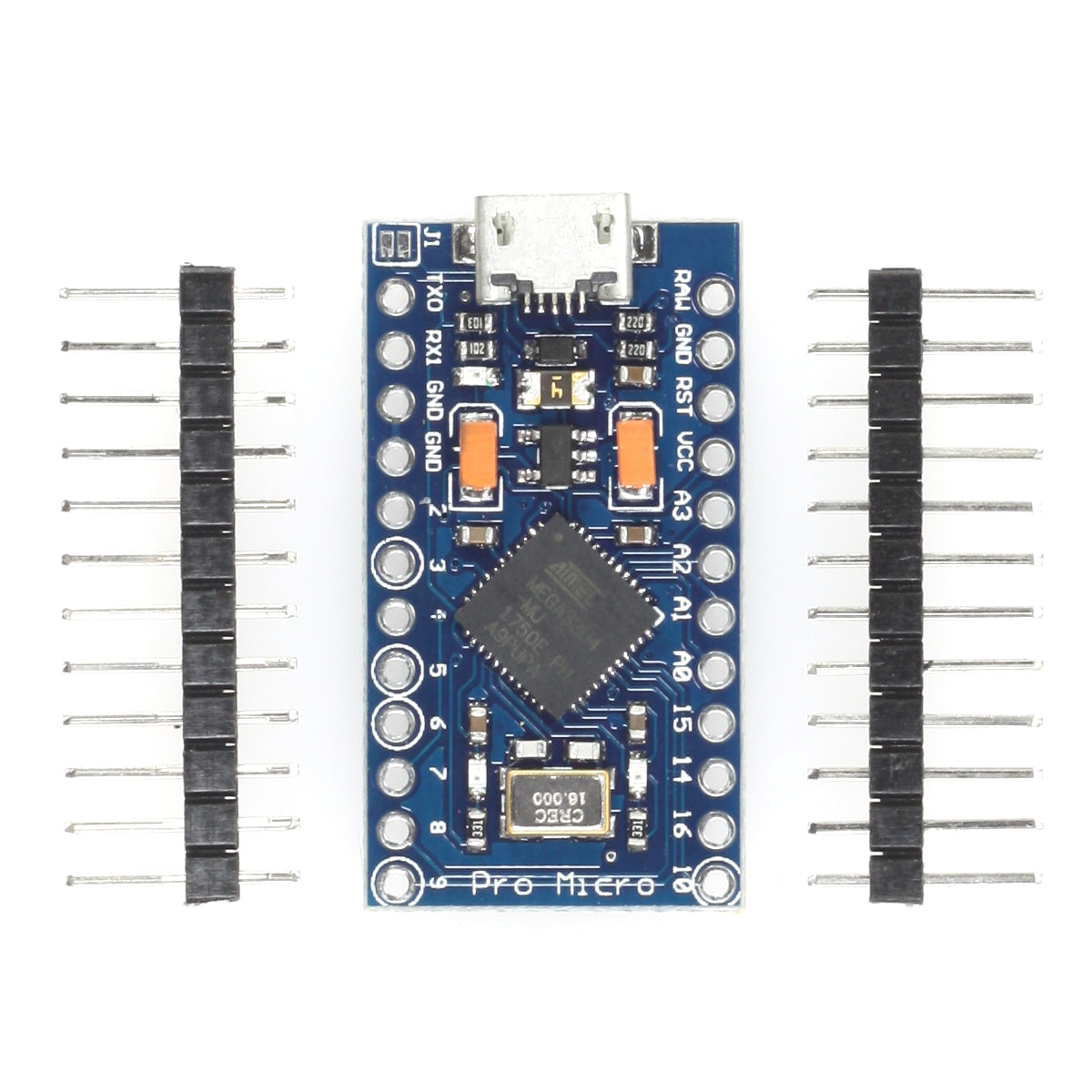

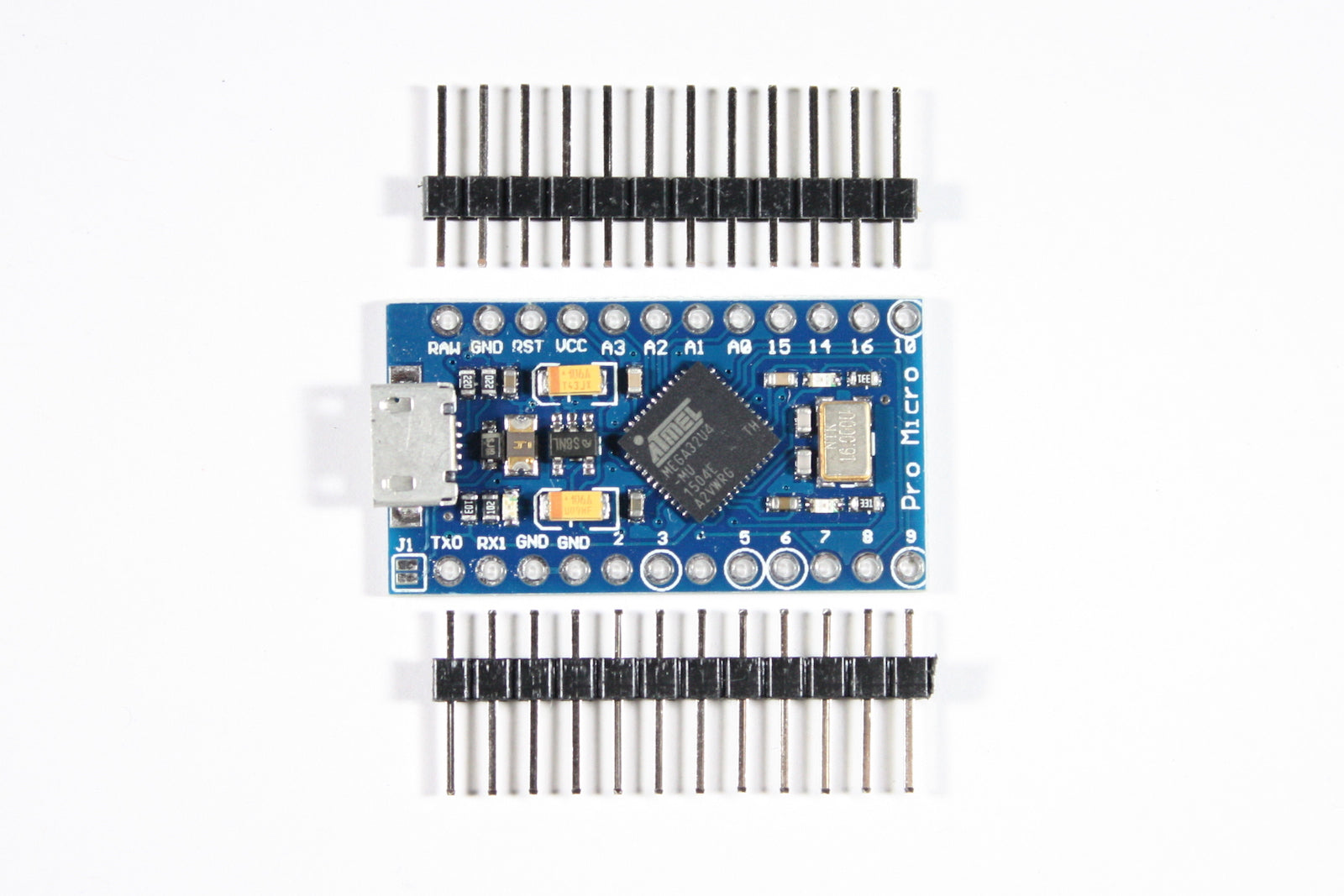

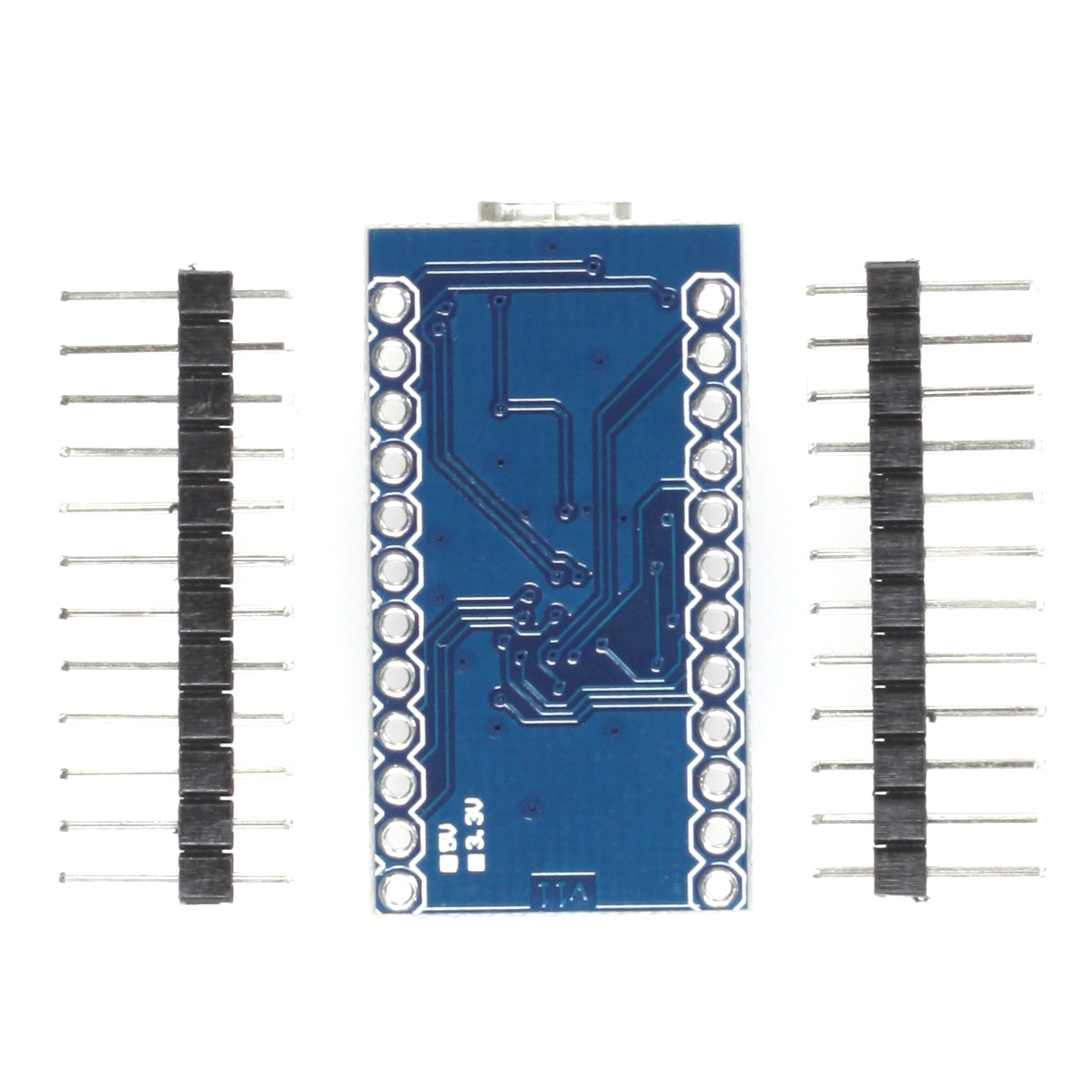

Pro Micro Module with ATmega32U4, 5V, 16MHz, Arduino compatible

10.990007

EUR 10,99

incl. 19 % VAT excl. shipping costs

weight 0,01 KG

Available, enough stock

Pro Micro Module with ATmega32U4, 5V, 16MHz, Arduino compatible

The Pro Micro module is equipped with an Atmel AVR ATmega32U4 microcontroller with an integrated USB controller. The module is compatible with Arduino Leonardo.

Please note that the unregulated input voltages need to be connected to the RAW pin. A regulated 5V voltage can directly be connected to the VCC port.

Specification:

Microcontroller: ATmega32U4
Operating Voltage: 5 V
Input Voltage: 5 - 12 V
Digital I/O Pins: 12 (of which 5 provide PWM output)
Analog Input Pins: 4
DC Current per I/O Pin: 40 mA
Flash Memory: 32 KB (of which 4 KB used by bootloader)
SRAM 2.5 KB
EEPROM: 1 KB
Clock Speed: 16 MHz

file file size
ATmega32U4_Summary.pdf

ATmega32U4_Summary.pdf

0.79 MB
