Genuino

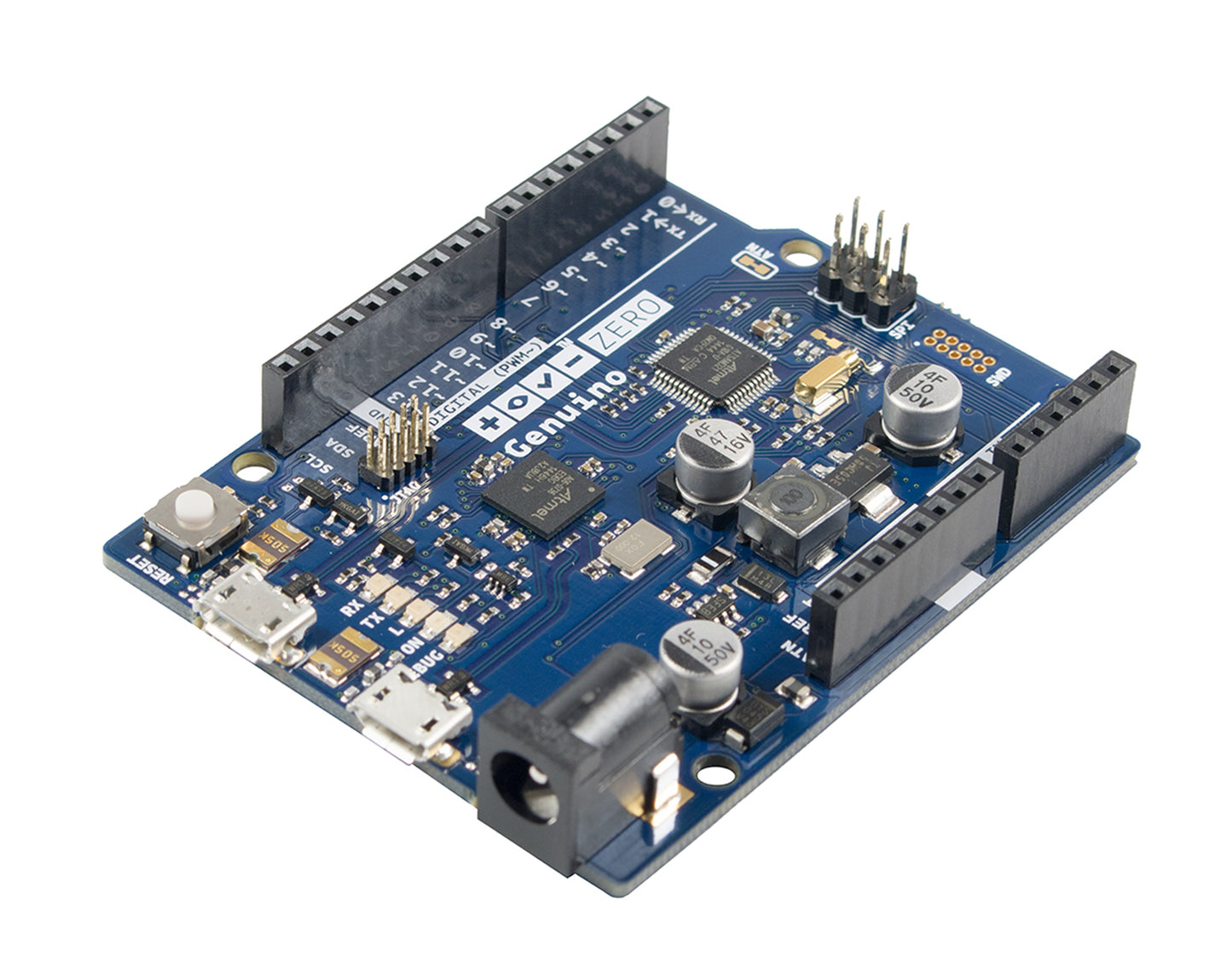

Genuino Zero Development Board, 32-Bit ARM Cortex M0+

Genuino Zero Development Board, 32-Bit ARM Cortex M0+

Regular price €44,90 EUR
Regular price Sale price €44,90 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Genuino Zero is a simple and powerful 32-bit extension of the platform established by the UNO. The Zero board expands the family by providing increased performance, enabling a variety of project opportunities for devices, and acts as a great educational tool for learning about 32-bit application development. The Zero applications span from smart IoT devices, wearable technology, high-tech automation, to crazy robotics. The board is powered by Atmel’s SAMD21 MCU, which features a 32-bit ARM Cortex® M0+ core. One of its most important features is Atmel’s Embedded Debugger (EDBG), which provides a full debug interface without the need for additional hardware, significantly increasing the ease-of-use for software debugging. EDBG also supports a virtual COM port that can be used for device programming and traditional Arduino boot loader functionality.

Specification

MicrocontrollerATSAMD21G18, 32-Bit ARM Cortex M0+
Operating Voltage3.3 V
Input Voltage (recommended)from 7 to 12 Volts
Digital I/O Pins20
PWM Digital I/O PinsAll but pins 2 and 7
Analog Input Pins6, 12-bit ADC channels
Analog Output Pins1, 10-bit DAC
DC Current per I/O Pin7 mA
Flash Memory256 KB
SRAM32 KB
Clock Speed48 MHz
