Arduino Mega 2560 Rev3

39.979954

EUR 39,98

incl. 19 % VAT excl. shipping costs

Product.Nr. A000067

weight 0,05 KG

Available, enough stock

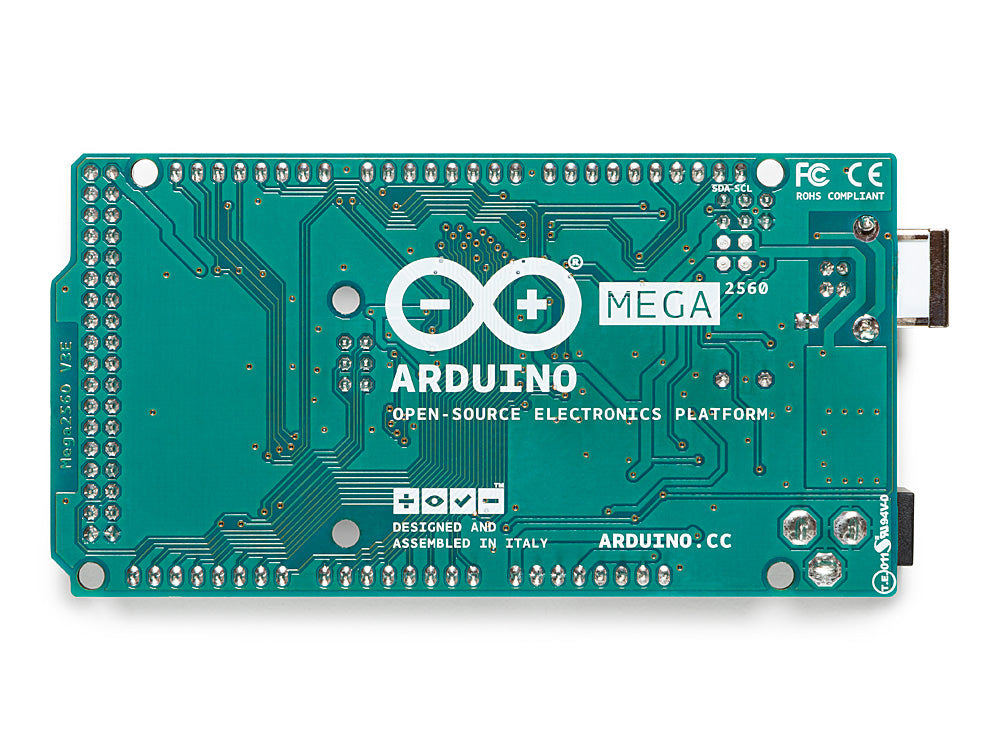

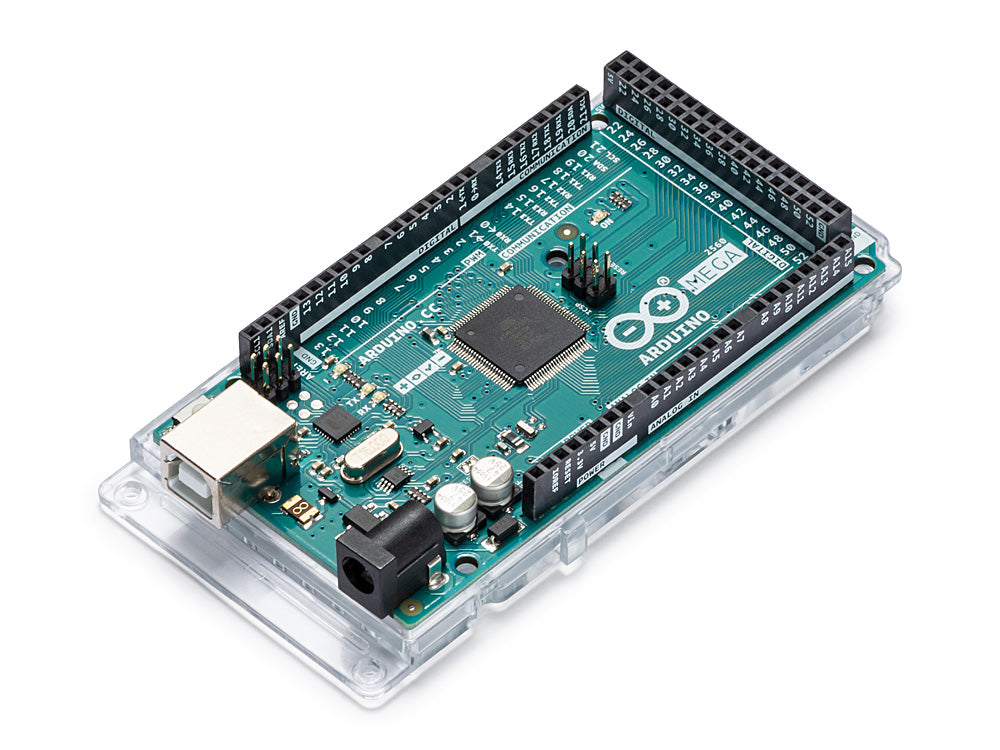

Arduino Mega 2560 Rev3

The Arduino Mega 2560 is designed for more complex projects. With 54 digital I/O pins, 16 analog inputs and a larger space for your sketch it is the recommended board for 3D printers and robotics projects. This gives your projects plenty of room and opportunities.

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.

Specifications:

Microcontroller: ATmega2560
Architecture: AVR
Operating Voltage: 5 V
Input Voltage: 5 - 12 V
Digital I/O Pins: 54 (of which 15 provide PWM output)
Analog Input Pins: 16
DC Current per I/O Pin: 20 mA
Flash Memory: 256 KB (of which 8 KB used by bootloader)
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
PCB Size: 53.3 mm x 101.52 mm
Weight: 37 g
Product Code: A000067
