Arduino Mega 2560 Rev3
Arduino Mega 2560 Rev3
Couldn't load pickup availability
The Arduino Mega 2560 is designed for more complex projects. With 54 digital I/O pins, 16 analog inputs and a larger space for your sketch it is the recommended board for 3D printers and robotics projects. This gives your projects plenty of room and opportunities.

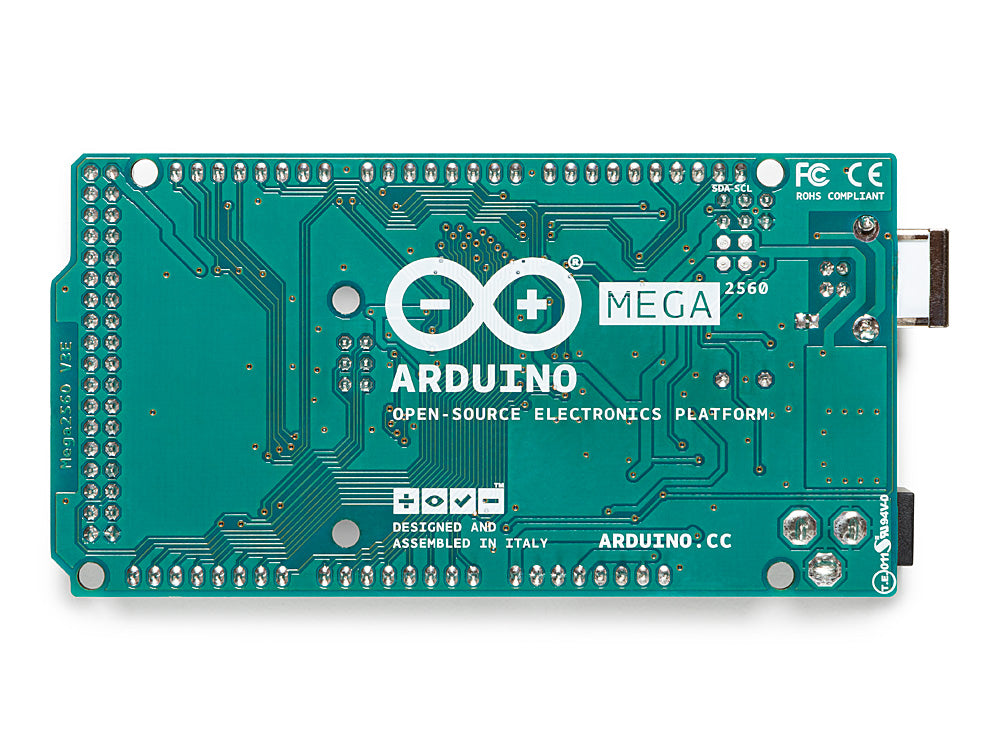

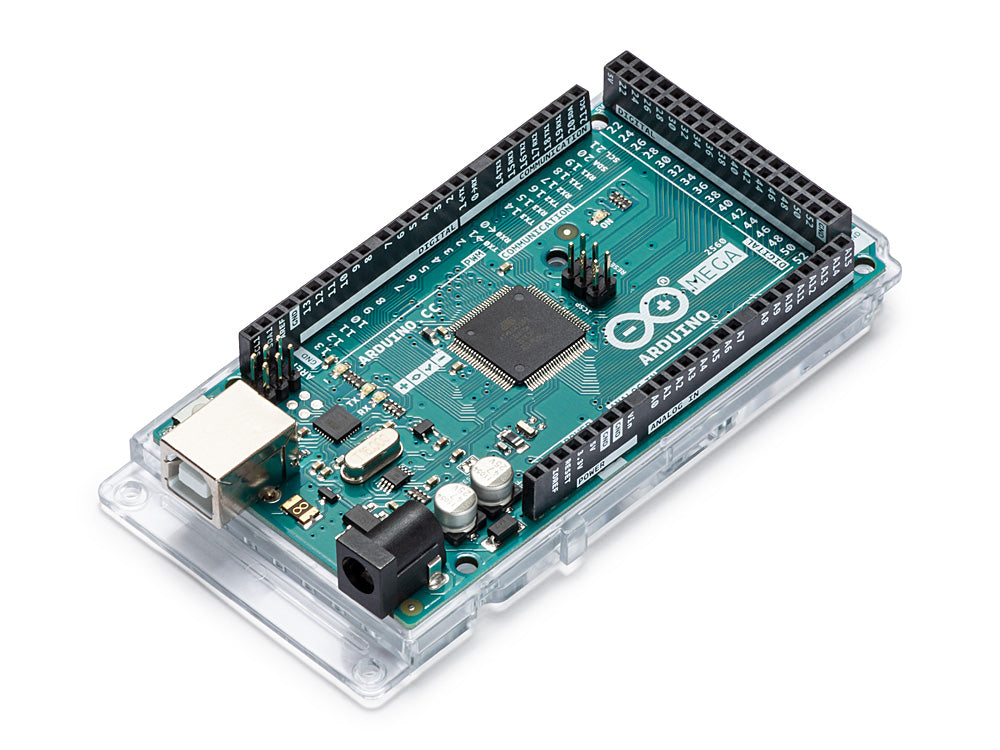

The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.
Specifications:
| Microcontroller: | ATmega2560 |
| Architecture: | AVR |
| Operating Voltage: | 5 V |
| Input Voltage: | 5 - 12 V |
| Digital I/O Pins: | 54 (of which 15 provide PWM output) |
| Analog Input Pins: | 16 |
| DC Current per I/O Pin: | 20 mA |
| Flash Memory: | 256 KB (of which 8 KB used by bootloader) |
| SRAM: | 8 KB |
| EEPROM: | 4 KB |
| Clock Speed: | 16 MHz |
| PCB Size: | 53.3 mm x 101.52 mm |
| Weight: | 37 g |
| Product Code: | A000067 |
