Adafruit Adalogger FeatherWing, RTC + SD Add-on For All Feather Boards

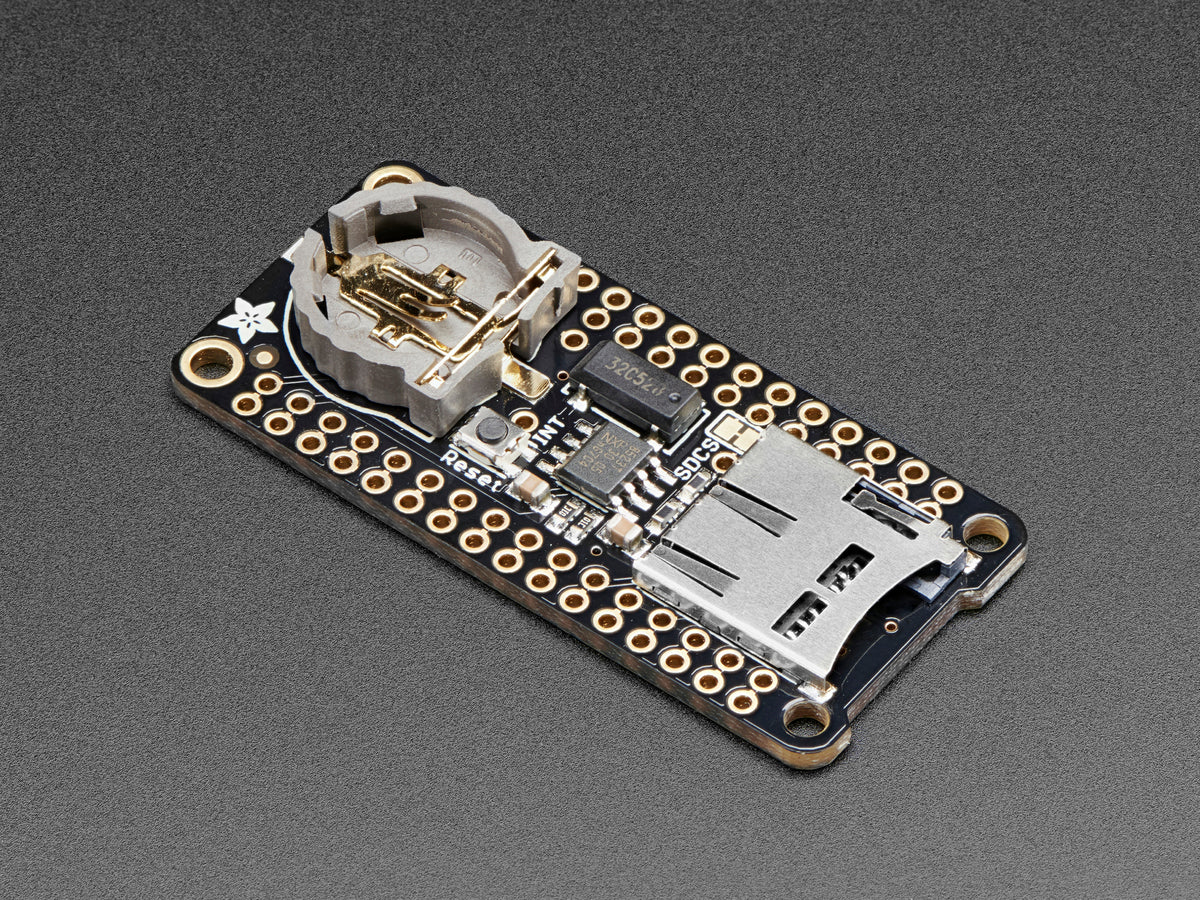

A Feather board without ambition is a Feather board without FeatherWings! This is the Adalogger FeatherWing: it adds both a battery-backed Real Time Clock and micro SD card storage to any Feather main board. Using our Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top of your Feather board and let the board take flight!

Check out our range of Feather boards here.

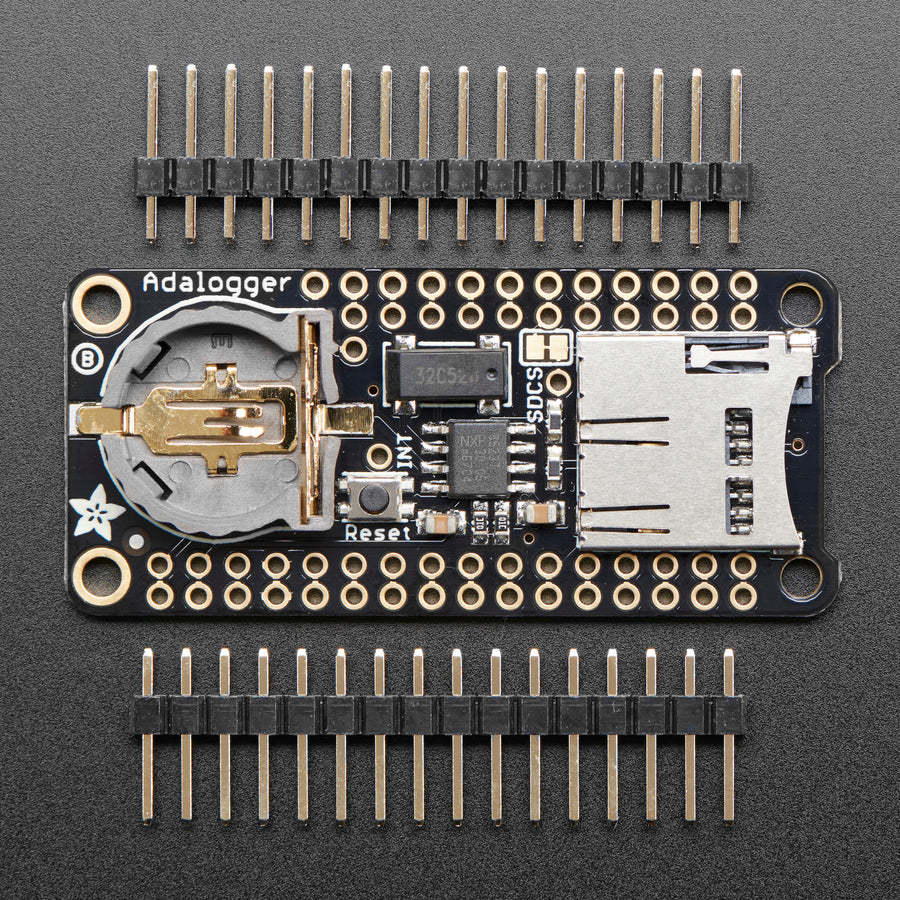

This FeatherWing will make it real easy to add datalogging to any of our existing Feathers. You get both an I2C real time clock (PCF8523) with 32KHz crystal and battery backup, and a microSD socket that connects to the SPI port pins (+ extra pin for CS). Tested and works great with all of our Feathers.

Does not come with a micro SD card. A CR1220 coin cell is required to use the RTC battery-backup capabilities! We don't include one by default. If you're not using the RTC part of the FeatherWing, a battery is not required.

For pinouts, wiring and code example that will run on all Feathers, check out the tutorial guide which we keep updated as new Feathers come out. It has more information including diagrams, example code for both Arduino and CircuitPython, pinouts, and more!
