Adafruit MCP9600 I2C Thermocouple Amplifier for K, J, T, N, S, E, B and R Type

Adafruit MCP9600 I2C Thermocouple Amplifier for K, J, T, N, S, E, B and R Type

Regular price €22,99 EUR
Regular price Sale price €22,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. The Adafruit MCP9600 does all that for you, and can be easily interfaced with any microcontroller or single-board-computer with I2C. Inside, the chip handles all the analog stuff for you, and can interface with just about any thermocouple type: K, J, T, N, S, E, B and R type are all supported! You can also set various alerts for over/under temperature, and read the thermocouple (hot) temperature and the chip (cold) temperature. All this over common I2C

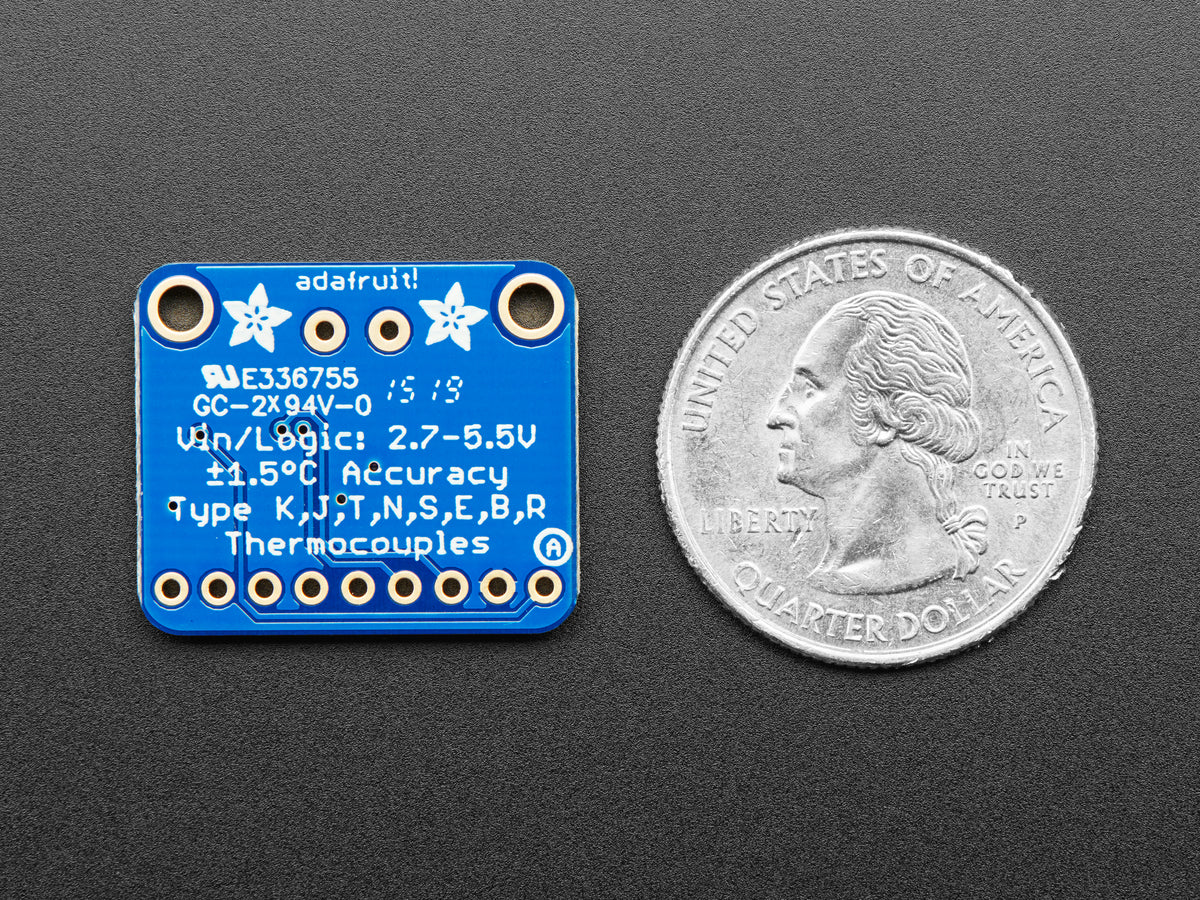

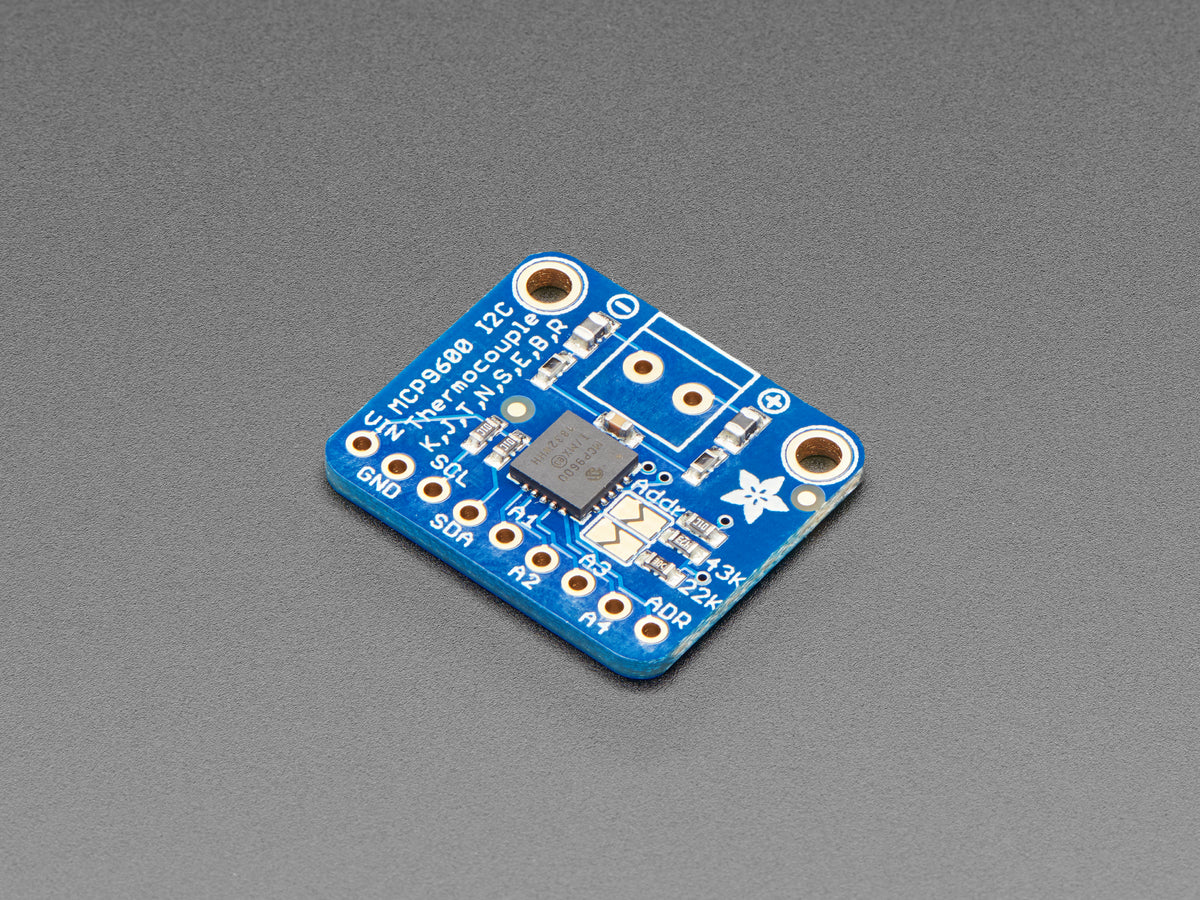

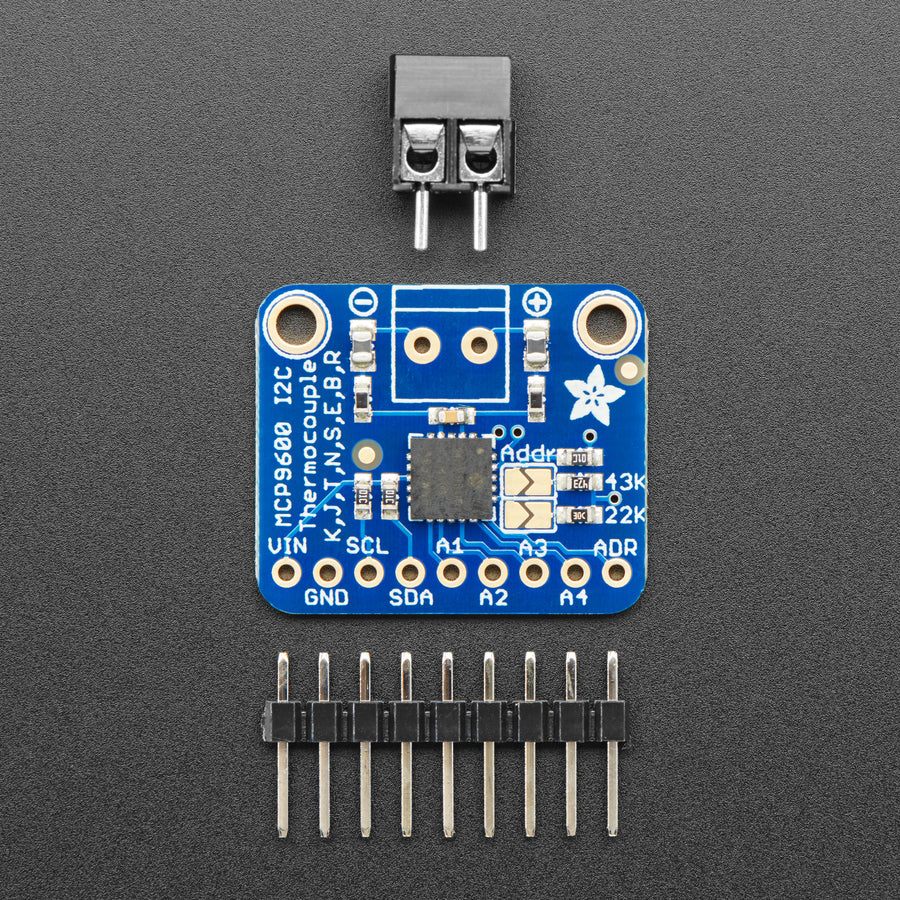

This breakout board has the chip itself, a 3.3V regulator and level shifting circuitry, all assembled and tested. Works great with 3.3V or 5V logic. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard).

  • Works with any K, J, T, N, S, E, B and R type thermocouple
  • Datasheet rated for:
    K Type: -200°C to +1372°C
    J Type: -150°C to +1200°C
    T Type: -200°C to +400°C
    N Type: -150°C to +1300°C
    E Type: -200°C to +1000°C
    S Type: +250°C to +1664°C
    B Type: +1000°C to +1800°C
    R Type: +250°C to +1664°C
  • Resolution of ±0.0625 °C - note that K thermocouples have about ±2°C to ±6°C accuracy
  • Internal temperature reading
  • 3.3 to 5v power supply and logic level compliant
  • I2C data connection
