Adafruit MSA301 Triple Axis Accelerometer, STEMMA QT / Qwiic

Adafruit MSA301 Triple Axis Accelerometer, STEMMA QT / Qwiic

Regular price €8,99 EUR
Regular price Sale price €8,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

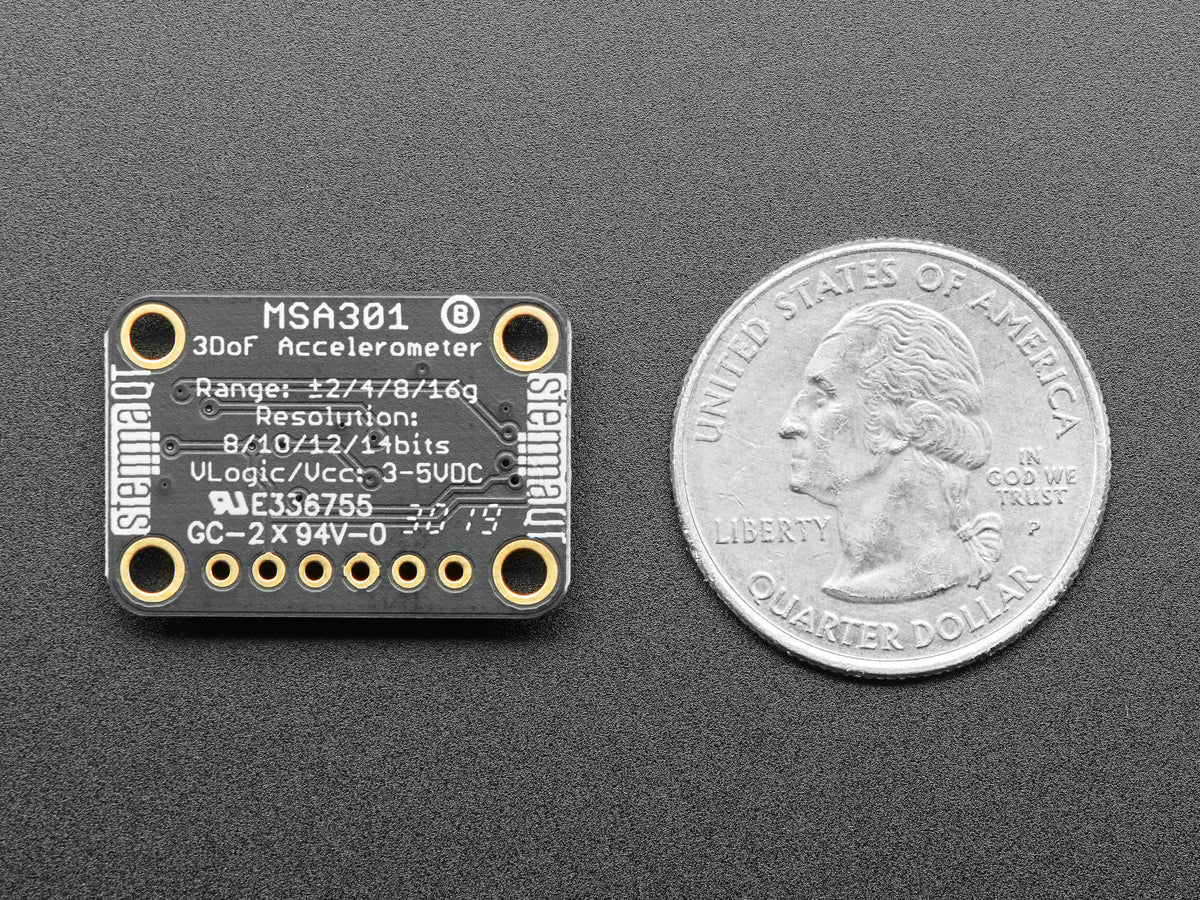

The MSA301 is a super small and low cost triple-axis accelerometer. It's inexpensive, but has just about every 'extra' you'd want in an accelerometer:

  • Three axis sensing, 14-bit resolution
  • ±2g/±4g/±8g/±16g selectable scaling
  • I2C interface on fixed I2C address 0x26
  • Interrupt output
  • Multiple data rate options 1 Hz to 500 Hz
  • As low as 2uA current draw in low power mode (just the chip itself, not including any supporting circuitry)
  • Tap, Double-tap, orientation & freefall detection

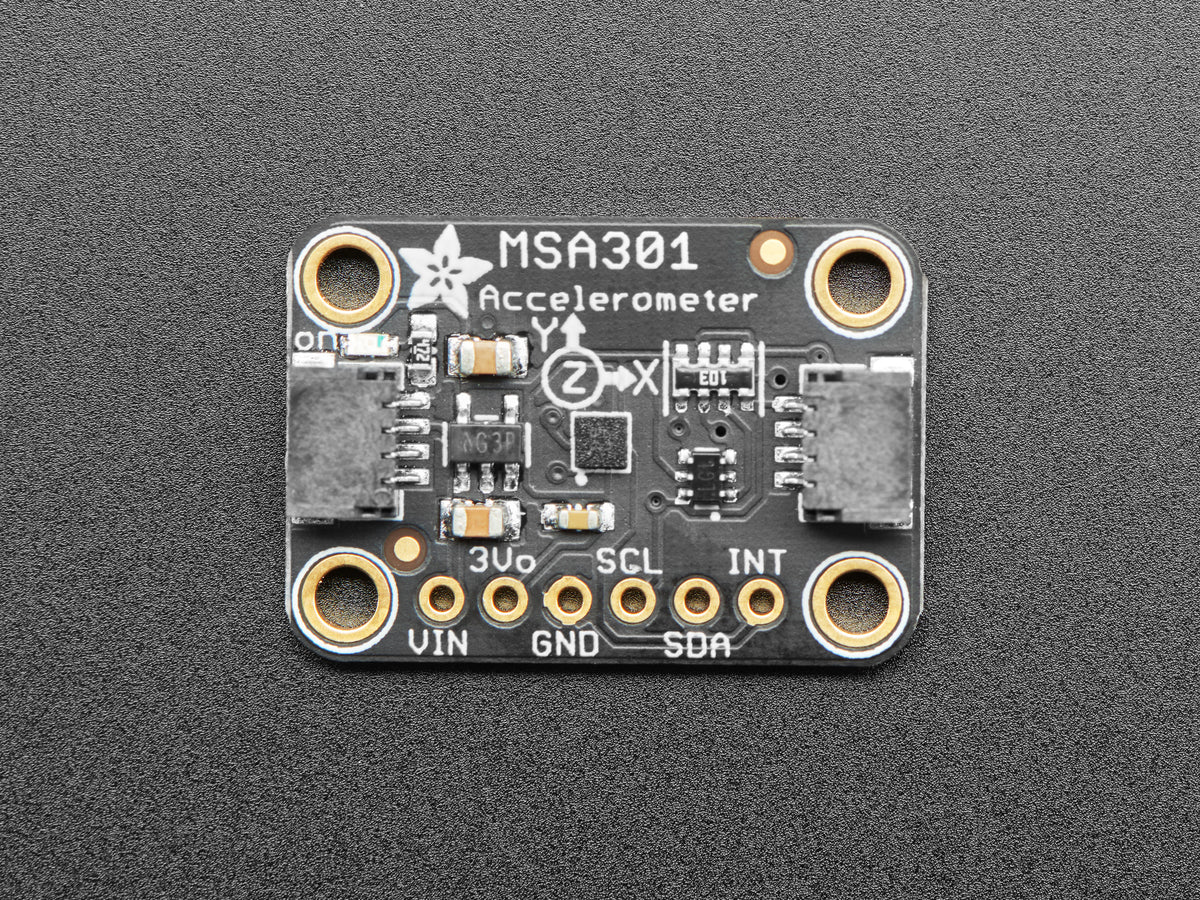

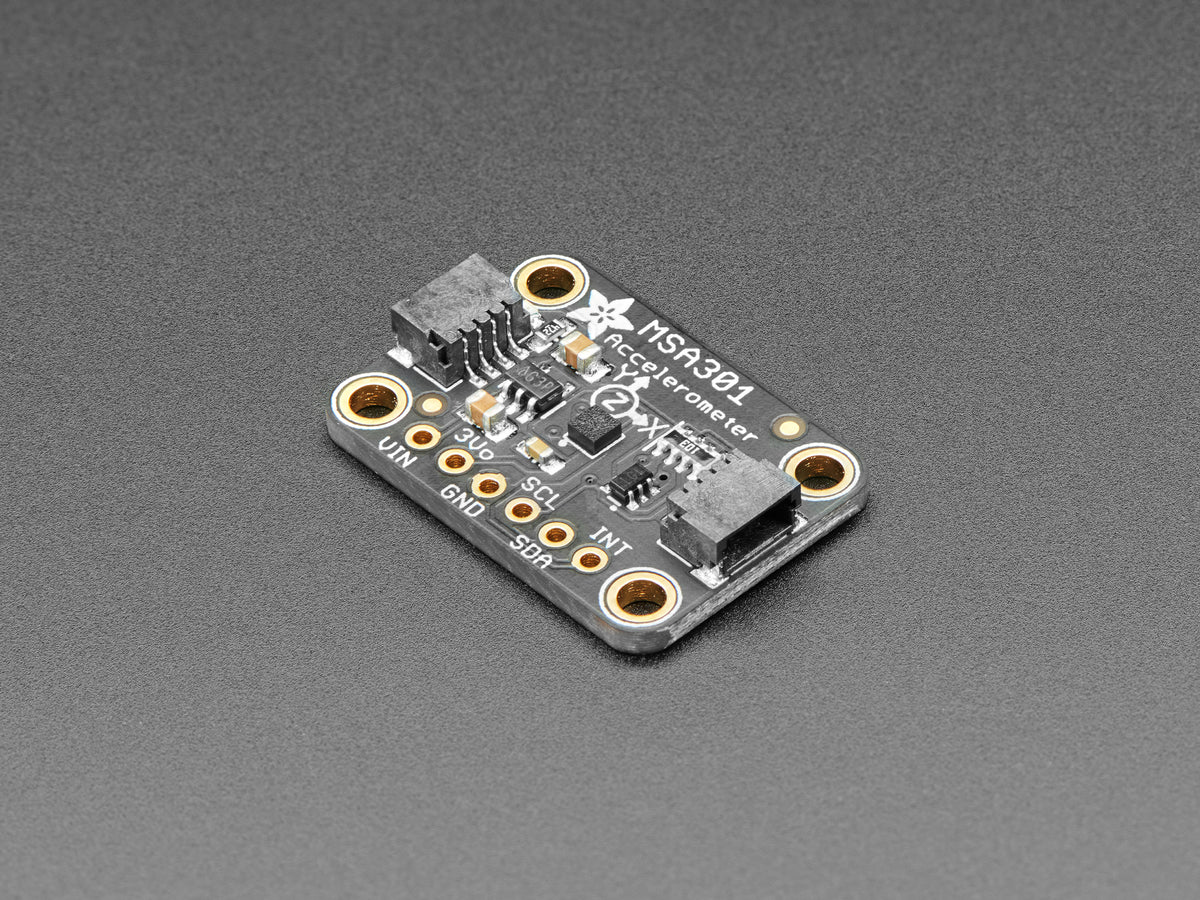

To make life easier so you can focus on your important work, we've taken the MSA301 and put it onto a breakout PCB along with support circuitry to let you use this little wonder with 3.3V (Feather/Raspberry Pi) or 5V (Arduino/ Metro328) logic levels. Additionally since it speaks I2C you can easily connect it up with two wires (plus power and ground!). We've added SparkFun Qwiic compatible STEMMA QT JST SH connectors that allow you to get going without needing to solder. Just use a STEMMA QT adapter cable, plug it into your favorite micro or Blinka supported SBC and you're ready to rock! Just wire up to your favorite micro and you can use our CircuitPython/Python or Arduino drivers to easily interface with the MSA301 and get motion measurements ASAP.

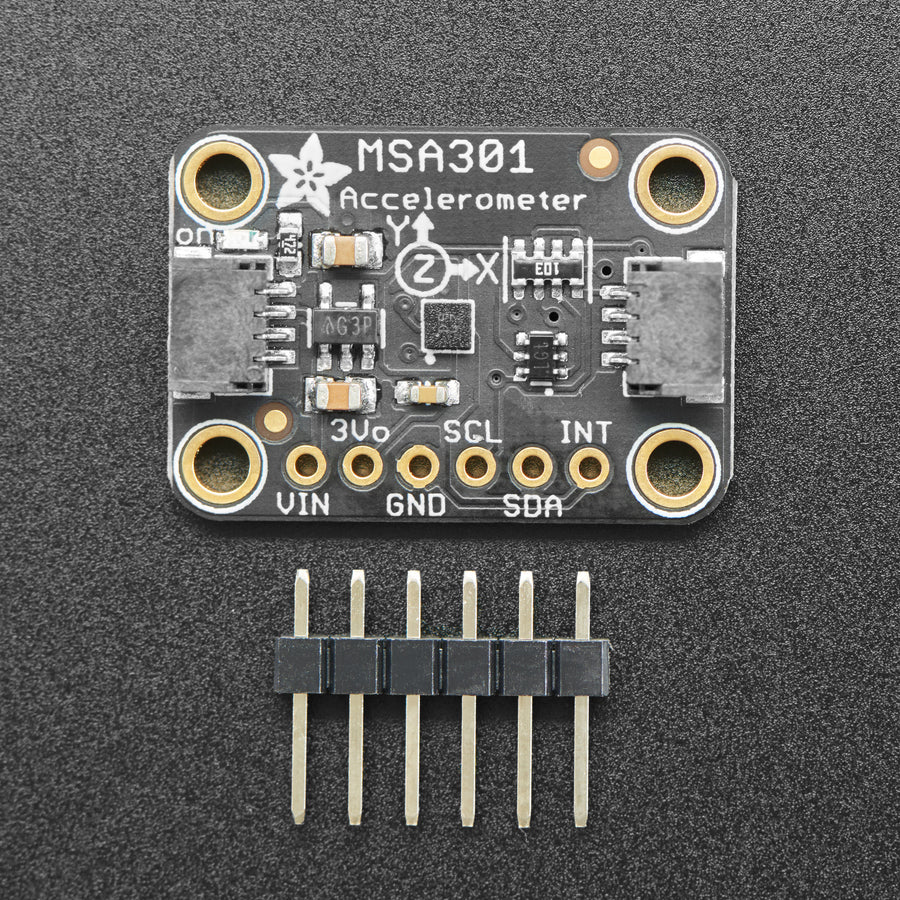

It's fully assembled and tested.  Comes with a bit of 0.1" standard header in case you want to use it with a breadboard or perfboard.  Four 2.5mm (0.1") mounting holes for easy attachment.
