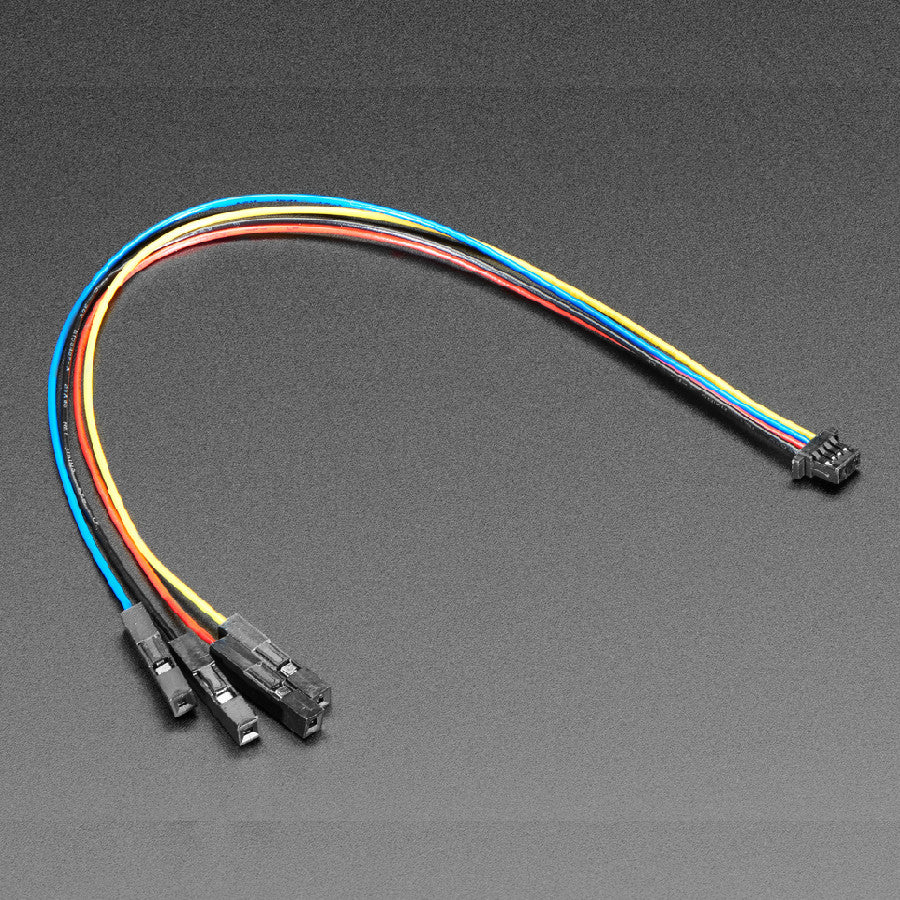

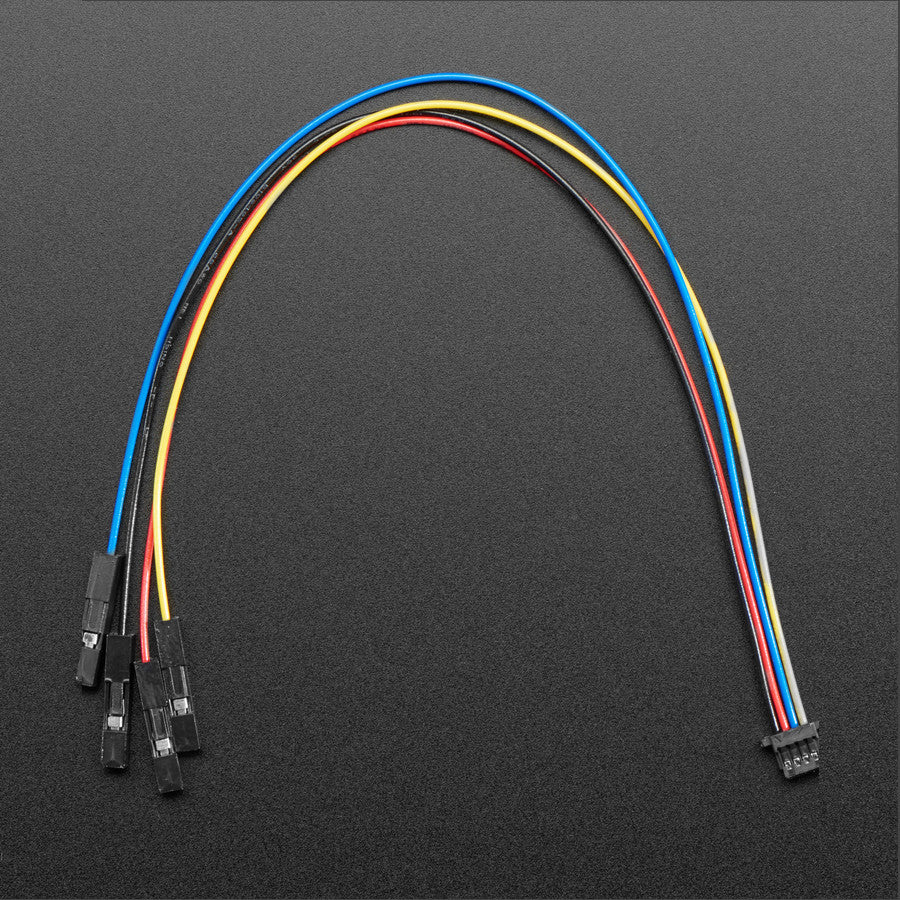

Adafruit STEMMA QT JST SH 4-pin Cable with Premium Female Sockets, 150mm Long, Qwiic Compatible

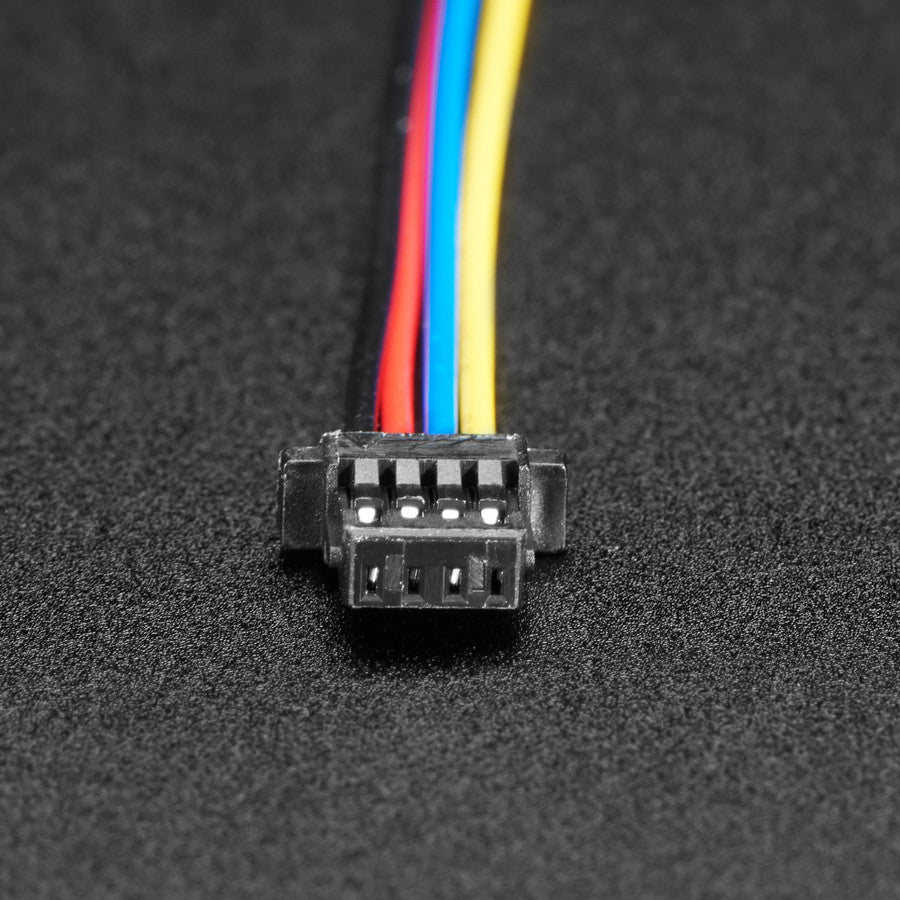

This 4-wire cable is a little over 150mm / 6" long and fitted with JST-SH female 4-pin connectors on one end and premium female headers on the other. Compared with the chunkier JST-PH these are 1mm pitch instead of 2mm, but still have a nice latching feel, while being easy to insert and remove.

This cable can be used with Qwiic boards, to easily connect sensors and drivers to board with common 0.1" pin headers. When used with Qwiic the colors are:

• Red - 3.3VDC Power
• Black - Ground
• Blue - I2C SDA Data
• Yellow - I2C SCL Clock
