Arduino Industrial 101

Arduino Industrial 101

€42,97 EUR
€42,97 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

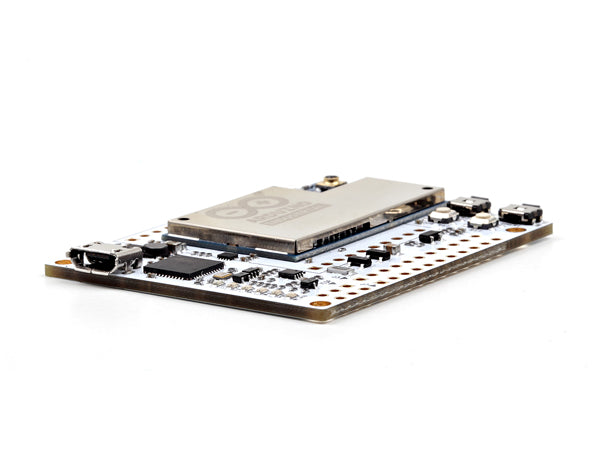

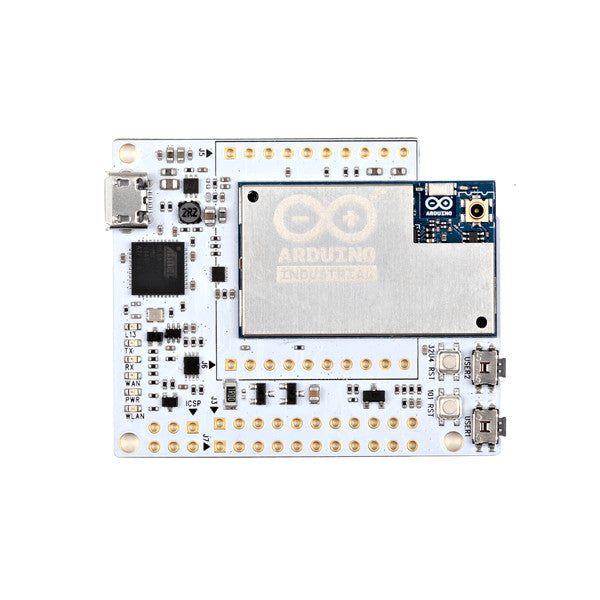

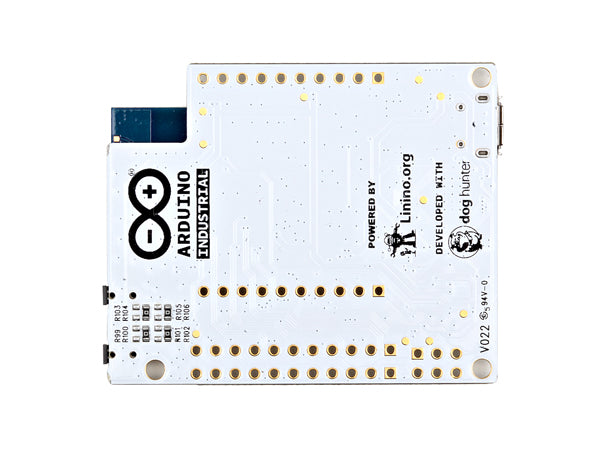

The Industrial 101 is a small form-factor YUN designed for product integration.

Arduino Industrial 101 is an Evaluation board for Arduino 101 LGA module. The ATmega32u4 microcontroller is integrated in the baseboard. The module supports a Linux distribution based on OpenWRT named LininoOS. The board has built-in WiFi (IEEE 802.11b/g/n operations up to 150Mbps 1x1 2.4 GHz),  3 GPIOs (of which 2 can be used as PWM Outputs), 4 Analog Inputs, 1 USB, 1 Ethernet signal on pin headers and a built-in DC/DC converter. Check out the assembling guide and simply connect your board to a computer with a micro USB cable to get started.

Specification

MicrocontrollerATmega32u4
ArchitectureAVR
Operating Voltage5 V
Input Voltage5 V
EEPROM1 KB
Flash Memory32 KB
SRAM2.5 KB
Clock Speed16 MHz
Analog I/O Pins12 (4 exported to headers)
Digital I/O Pins20 (7 exported to headers)
PWM Output7 (2 exported to headers)
DC Current per I/O Pin40 mA
Power Consumption130 mA
PCB Size42 mm x 51 mm
Weight12 g
ProcessorAtheros AR9331
ArchitectureMIPS
Operating Voltage3.3 V
Flash Memory16 MB
RAM64 MB DDR2
Clock Speed400 MHz
WiFi802.11 b/g/n 2.4 GHz
Ethernet802.3 10/100 Mbit/s (Exported on headers)
USB2.0 Host (Exported on headers)
