Arduino Micro
Arduino Micro
Couldn't load pickup availability

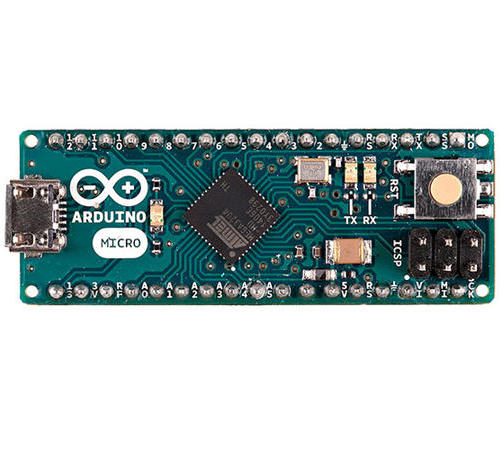

The Arduino Micro is a microcontroller board based on the ATmega32u4, developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.
The Micro is similar to the Arduino Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port. It also has other implications for the behavior of the board.
| Microcontroller | ATmega32u4 |
| Architecture | AVR |
| Operating Voltage | 5 V |
| Flash memory | 32 KB of which 4 KB used by bootloader |
| SRAM | 2.5 KB |
| Clock Speed | 16 MHz |
| Analog I/O Pins | 12 |
| EEPROM | 1 KB |
| DC Current per I/O Pins | 40 mA on I/O Pins; 50 mA on 3.3 V |
| Input Voltage | 7-12 V |
| Digital I/O Pins | 20 |
| PWM Output | 7 |
| Power Consumption | 29 mA |
| PCB Size | 18 x 48 mm |
| Weight | 7 g |
| Product Code | A000053 |
