Arduino

Arduino Mini 05

Arduino Mini 05

Regular price €16,69 EUR
Regular price Sale price €16,69 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

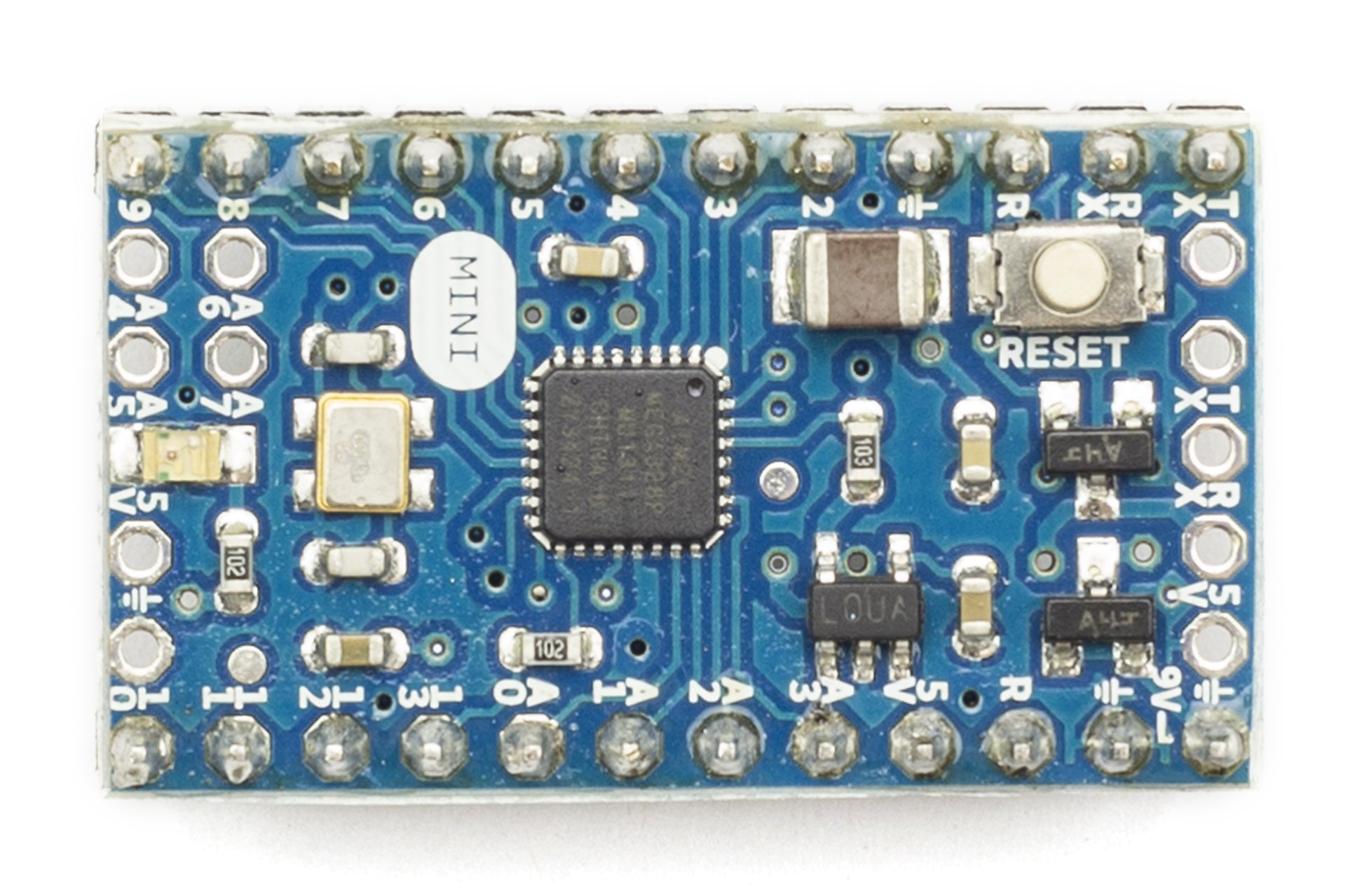

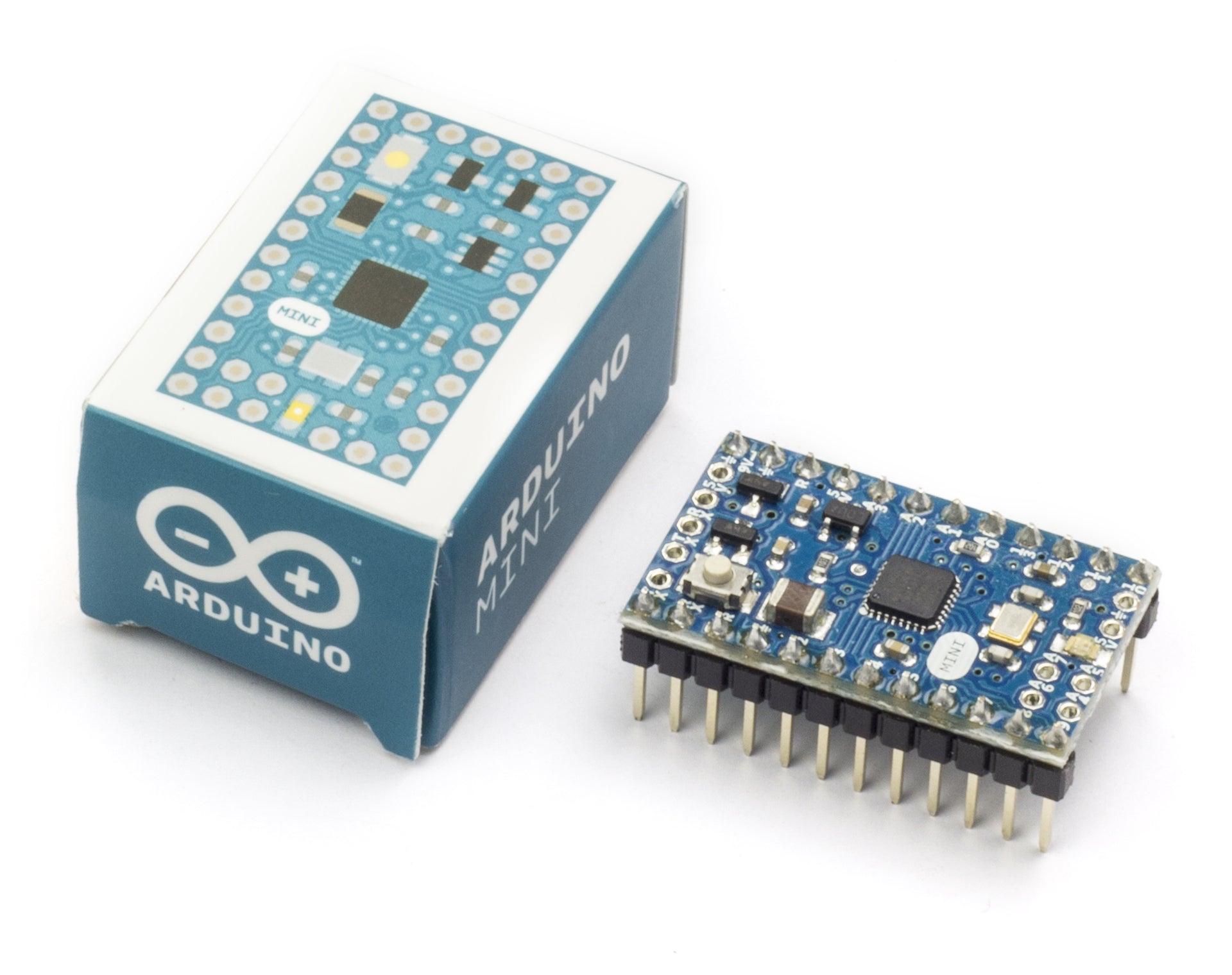

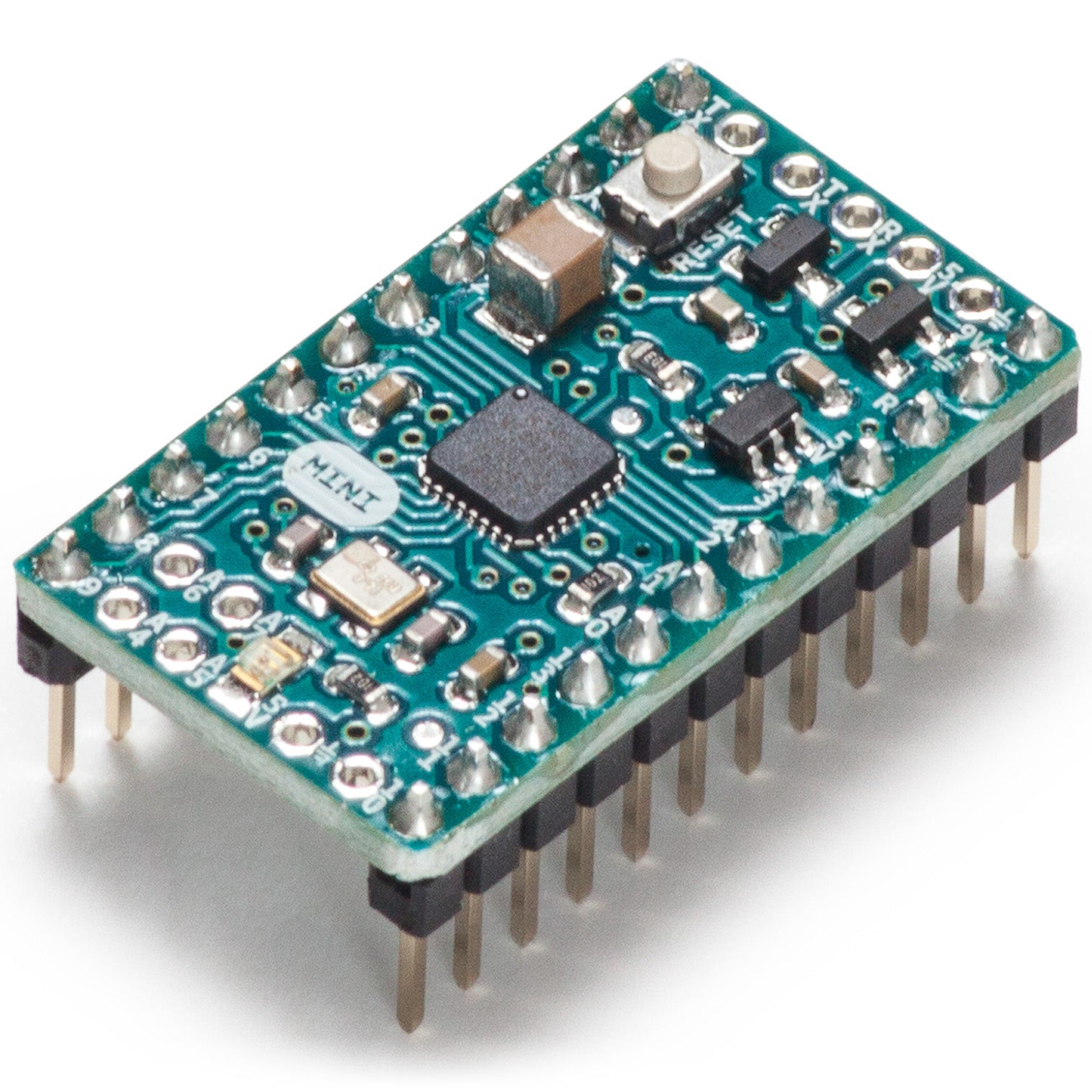

The Arduino Mini 05 is a small microcontroller board originally based on the ATmega168, but now supplied with the 328, intended for use on breadboards and when space is at a premium. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, and a 16 MHz crystal oscillator. It can be programmed with the USB Serial adapter or other USB or RS232 to TTL serial adapter.

The new Mini (revision 05) has a new package for the ATmega328, which enables all components to be on the top of the board. It also has an onboard reset button. The new version has the same pin configuration as revision 04.

Warning: Don't power the Arduino mini with more than 9 volts, or plug the power in backwards: you'll probably kill it.

Specifications:

Microcontroller:ATmega328
Architecture:AVR
Operating Voltage:5 V
Input Voltage:7 - 9 V
Digital I/O Pins:14 (of which 6 provide PWM output)
Analog Input Pins:8 (of which 4 are broken out onto pins)
DC Current per I/O Pin:40 mA
Flash Memory:32 KB (of which 2 KB used by bootloader)
SRAM:2 KB
EEPROM:1 KB
Clock Speed:16 MHz
PCB Size:18 mm x 30 mm
Product Code:A000087
