Arduino

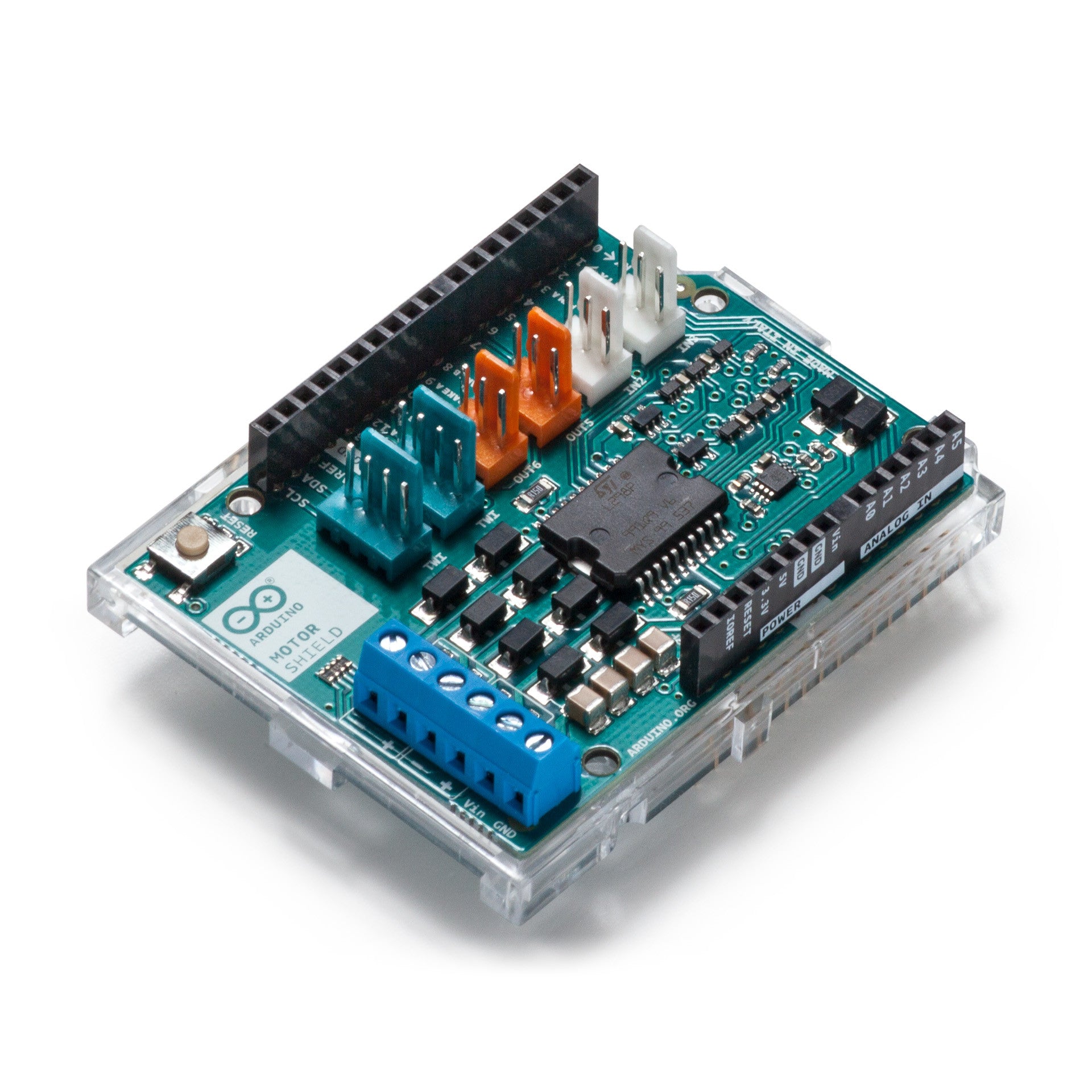

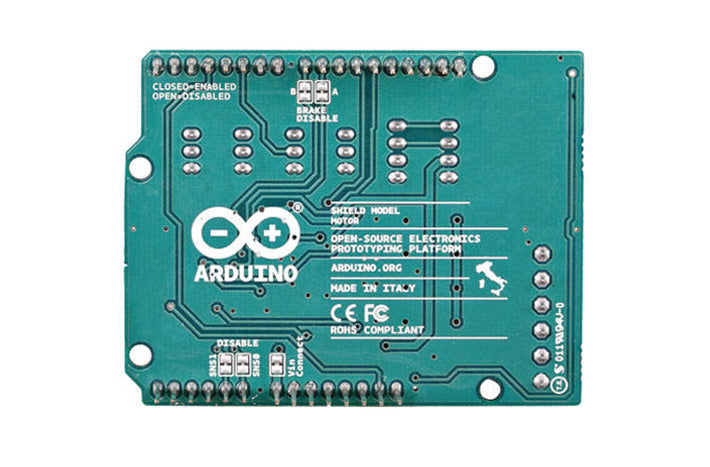

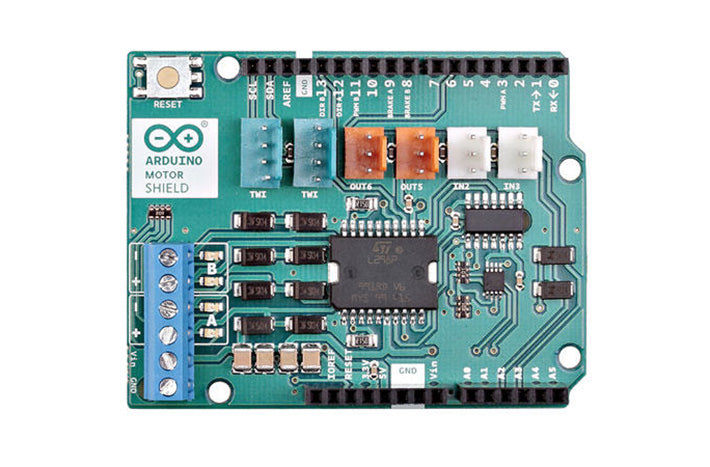

Arduino Motor Shield Rev3

Arduino Motor Shield Rev3

Regular price €26,97 EUR
Regular price Sale price €26,97 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

The Arduino Motor Shield is based on the L298 (datasheet), which is a dual full-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors. It lets you drive two DC motors with your Arduino board, controlling the speed and direction of each one independently. You can also measure the motor current absorption of each motor, among other features. The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board.

Technical Specifications:

Operating Voltage5V to 12V
Motor controllerL298P, Drives 2 DC motors or 1 stepper motor
Max current2A per channel or 4A max (with external power supply)
Current sensing1.65V/A
Free running stop and brake function
