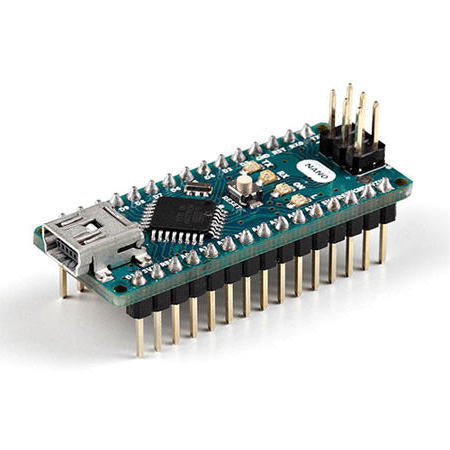

The Arduino Nano is a small version of the Arduino UNO with a breadboard-friendly form factor. The board was originally designed by Gravitech.
The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
Specifications:
| Microcontroller: | ATmega328 |
| Architecture: | AVR |
| Operating Voltage: | 5 V |
| Input Voltage: | 7 - 12 V |
| Digital I/O Pins: | 22 (of which 6 provide PWM output) |
| Analog Input Pins: | 8 |
| DC Current per I/O Pin: | 40 mA |
| Flash Memory: | 32 KB (of which 2 KB used by bootloader) |
| SRAM: | 2 KB |
| EEPROM: | 1 KB |
| Clock Speed: | 16 MHz |
| Power Consumption: | 19 mA |
| PCB Size: | 18 mm x 45 mm |
| Weight: | 7 g |
| Product Code: | A000005 |
