Arduino

Arduino Nano ESP32

Arduino Nano ESP32

Regular price €25,99 EUR
Regular price Sale price €25,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

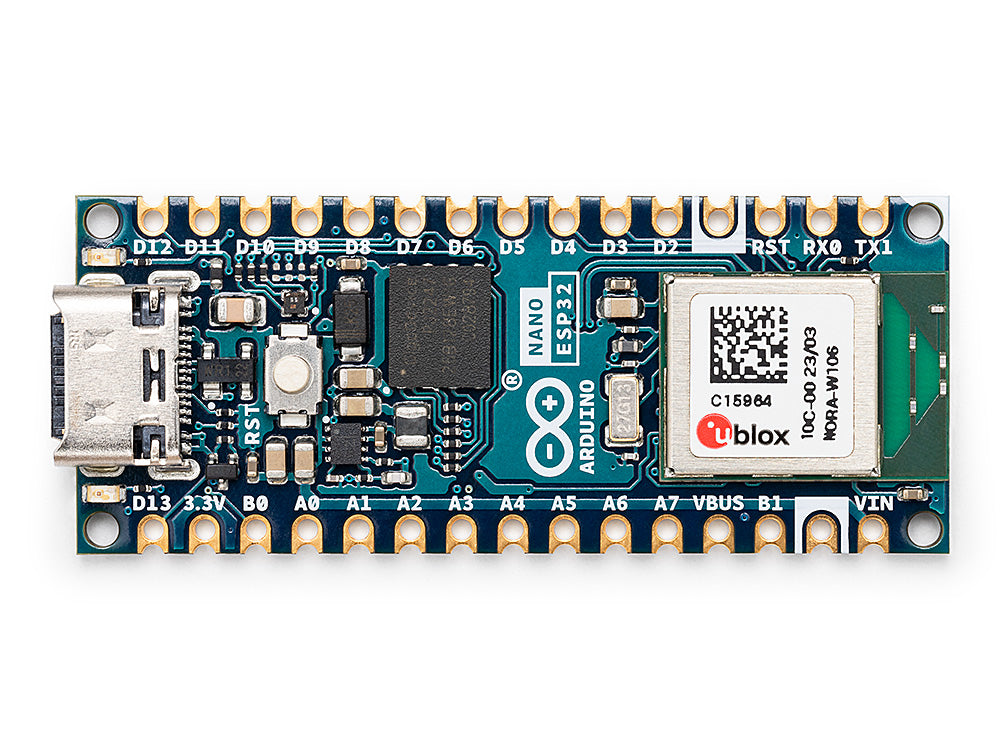

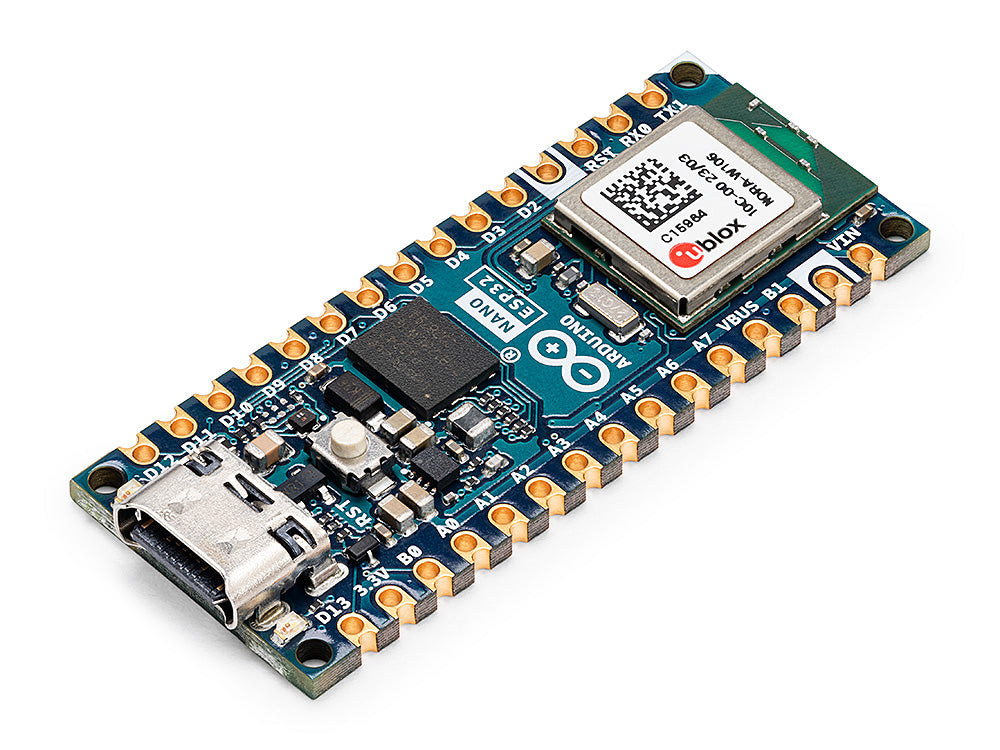

The Arduino Nano ESP32 stands as a groundbreaking development board, being the first Arduino board powered by an ESP32 microcontroller. This exceptional board, featuring the NORA-W106 module from u-blox®, is designed to empower your IoT and MicroPython projects. With its USB-C® connector and a substantial 16 MB of Flash memory, it serves as an incredibly versatile platform for both hobbyists and professionals​​.

Key Features:

  • High-Performance Module: At its core, the Nano ESP32 boasts the NORA-W106, equipped with an ESP32-S3 chip, delivering robust Wi-Fi® and Bluetooth® (5.0 and above) capabilities. This makes it an ideal choice for a wide range of IoT applications.
  • Designed for Versatility: Embracing the popular Nano form factor, this board is compatible with numerous hardware accessories, extending its utility across various projects.


Technical Specifications:

  • Microcontroller: u-blox® NORA-W106 (ESP32-S3)
  • Connectivity: Wi-Fi® and Bluetooth® enabled
  • USB Interface: USB-C® connector
  • I/O Capabilities: 14 Digital I/O Pins, 8 Analog Input Pins, and PWM support on all pins (max 5 simultaneously)
  • Power Specifications: Operates at 3.3 V I/O Voltage, with an input voltage range of 6-21 V. Note: The board does not have a 5V pin but offers a VBUS pin providing 5 V when powered via USB.
  • Memory: 384 kB ROM, 512 kB SRAM, and 128 Mbit (16 MB) External Flash

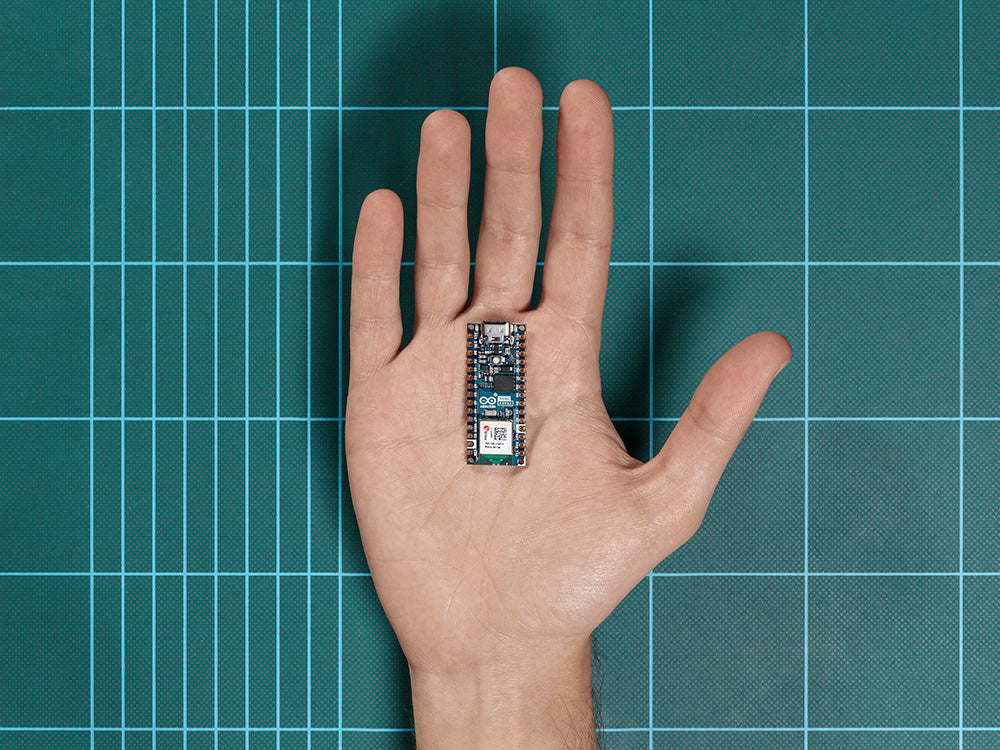

  • Dimensions: Width 18 mm, Length 45 mm

Applications:
The Arduino Nano ESP32 is perfect for:

  • IoT development projects requiring Wi-Fi and Bluetooth connectivity.
  • Learning and experimenting with MicroPython.
  • Prototyping for various applications due to its compact size and compatibility with numerous accessories.
