Genuino Micro Development Board, ATmega32U4
Genuino Micro Development Board, ATmega32U4

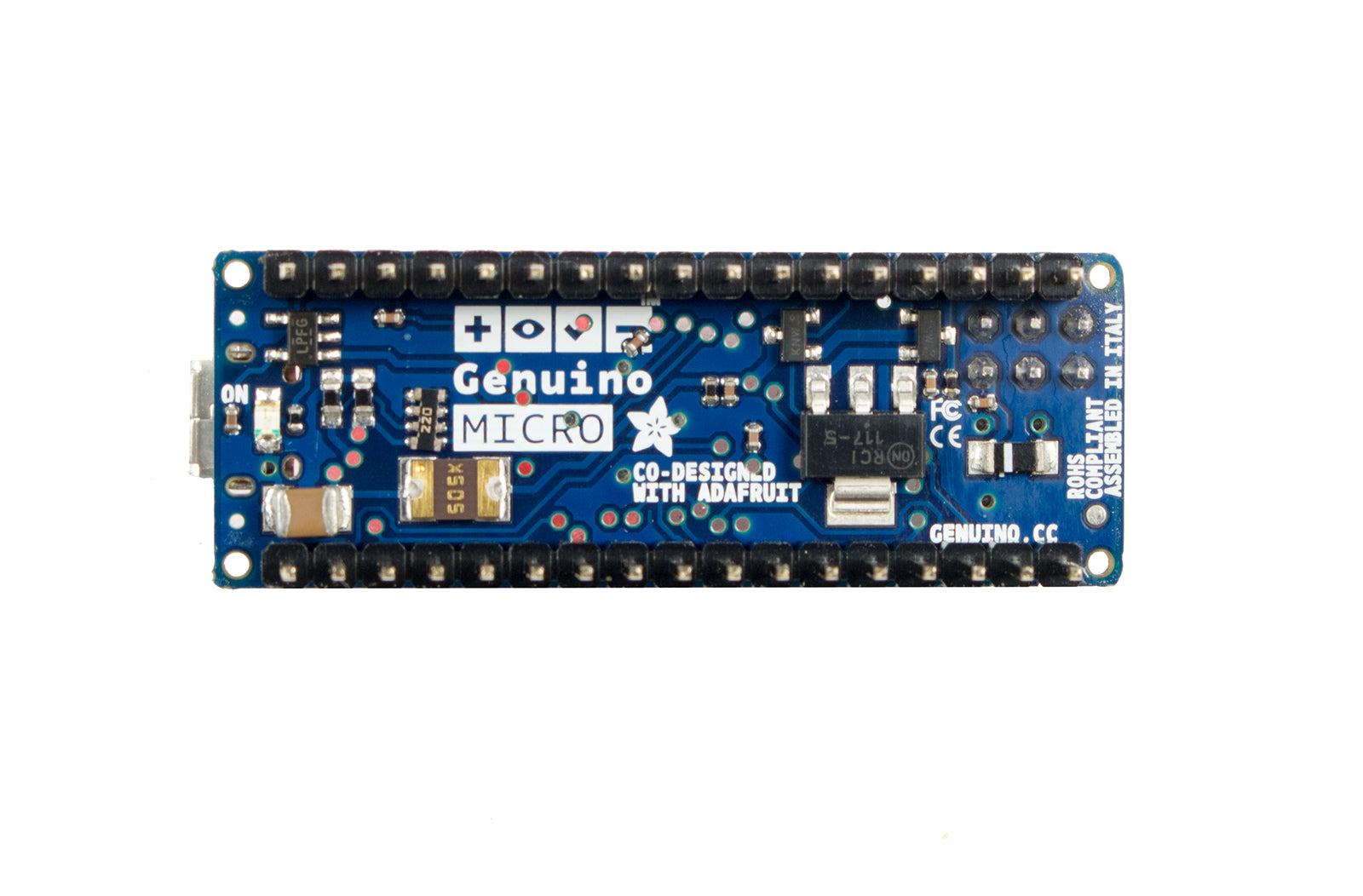

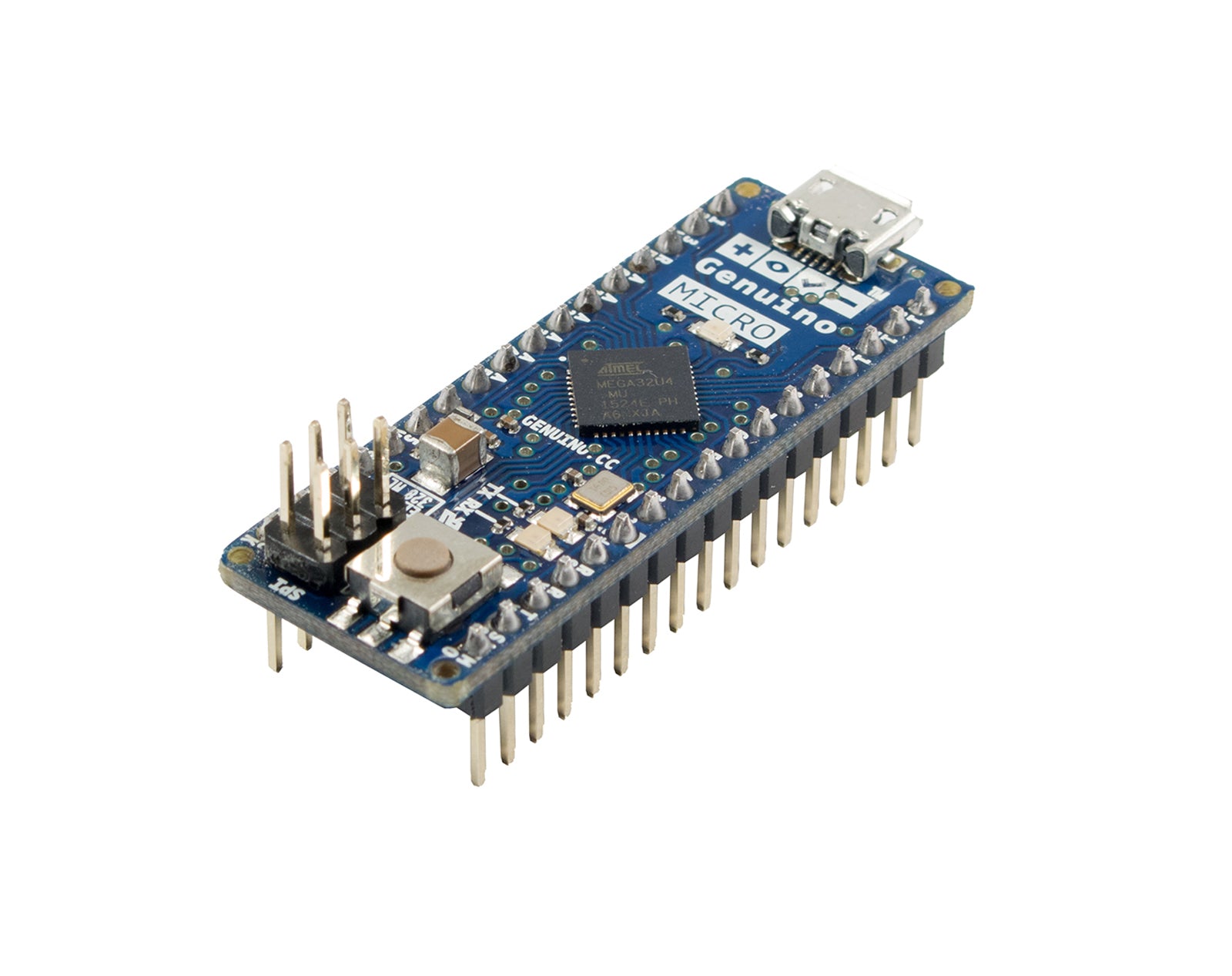

Genuino Micro is a microcontroller board based on the ATmega32u4, developed in conjunction with Adafruit. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.
The Micro is similar to the Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Specification
Microcontroller | ATmega32U4 |
Operating Voltage | 5 V |
Input Voltage (recommended) | 7 - 12 V |
Input Voltage (limit) | 6 - 20 V |
Digital I/O Pins | 20 |
PWM Digital I/O Pins | 7 |
Analog Input Pins | 12 |
DC Current per I/O Pin | 40 mA |
DC Current for 3.3V Pin | 50 mA |
Flash Memory | 32 KB |
Flash Memory for Bootloader | 4 KB |
SRAM | 2.5 KB |
EEPROM | 1 KB |
Clock Speed | 16 MHz |
