Kittenbot Meowbit, Card-sized Graphical Retro Game Computer, micro:bit compatible
Kittenbot Meowbit, Card-sized Graphical Retro Game Computer, micro:bit compatible
Couldn't load pickup availability
Meowbit is a card-sized graphical retro game computer with allows you coding with Makecode arcade and Python. In other words, it combines game programming with hardware devices.

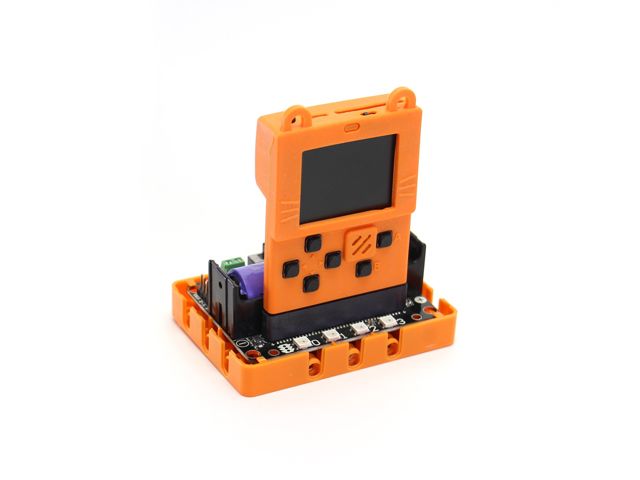

Meowbit is a card-sized graphical programming video game console designed for teenagers. It contains 1.8' full-color screen, 6 x programmable buttons ,1 x buzzer, built-in light sensor, temperature sensor, SD card slot (For external storage), multiplayer connector and edge connector. Especially the edge connector could access most micro:bit expansion boards. We recommend using Robot:bit for Mewobit, it can help you create a robot quickly.
Features:
- 160 x 128 full-color TFT LCD provides a more vivid interactive interface
- Easy to use graphical programming, learning while playing experience through game programming
- Cross-cutting functions including hardware and software
- Abundant hardware resources made infinite possibility possible
- Support multi-platform including Makecode arcade, Kittenblock, scratch3.0, MicroPython; support multi-language
- Support diagraming, showing the data changing of the sensors more intuitive

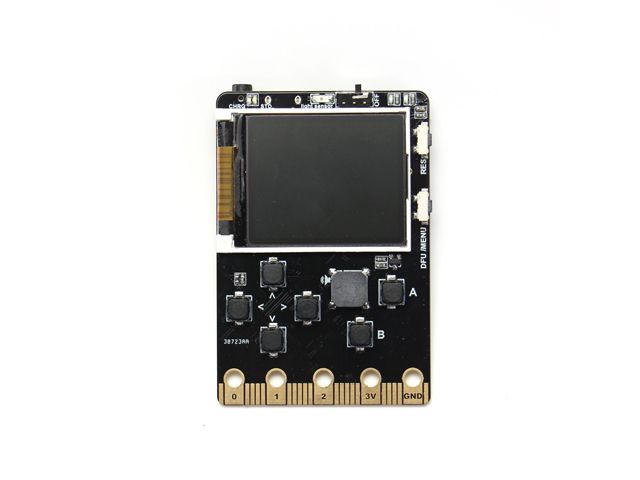

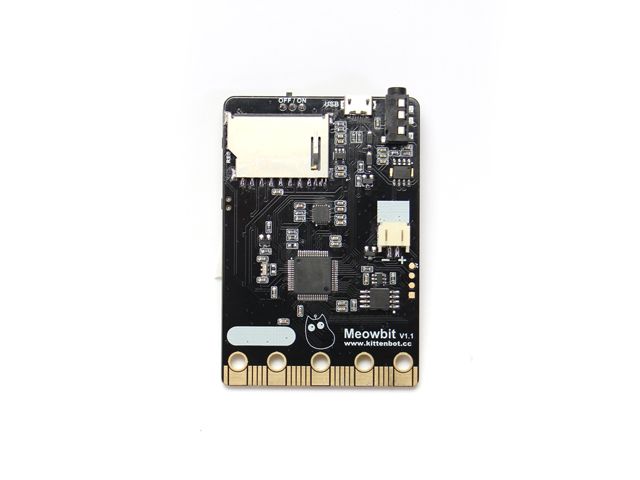

Hardware:
| 1 | Charging/work indicator | 11 | Button A/B |
| 2 | Light sensor | 12 | Compatible with micro:bit's 40 pins Goldfinger |
| 3 | Power switch | 13 | USB program download port / charging port |
| 4 | 2x Programmable LED | 14 | SD card slot (Use for store programs or extend wireless modules) |
| 5 | Reset | 15 | Multiplayer Connector |
| 6 | DFU mode button | 16 | MPU-6050 gyroscope |
| 7 | 160 x 128 TFT color screen | 17 | 3.7V lithium battery package interface |
| 8 | Temperature sensor | 18 | STM32F401RET6, 32-bit ARM Cortex M4 core MCU |
| 9 | 4x Direction button | 19 | 2MByte SPI-flash (default download Unicode character table) |
| 10 | Buzzer | 20 | Signature area |
Programming mode:
Makecode Arcade graphical programming mode
MicroPython programming mode
Parameters:
- MCU: STM32F401RET6, 32-bit ARM Cortex M4 core
- Operating voltage: 3.3V
- Supply voltage: USB(5V), Lithium battery pack(3.7~4.2V)
- Output current: 500mA(max)
- Dimensions: 52 mm x 76 mm x 12 mm
- MacOS, Windows 7 and above
Part List:
- Meowbit

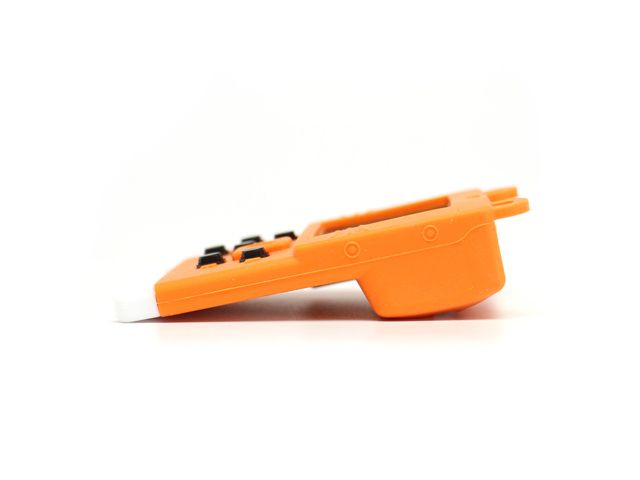

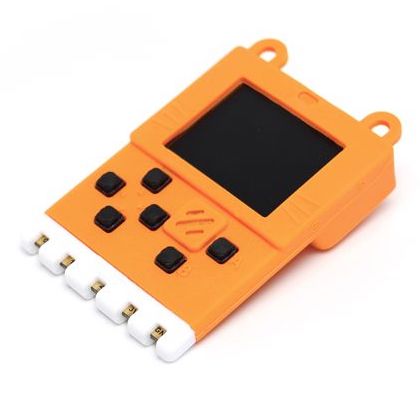

- Silicone Sleeve for Meowbit
