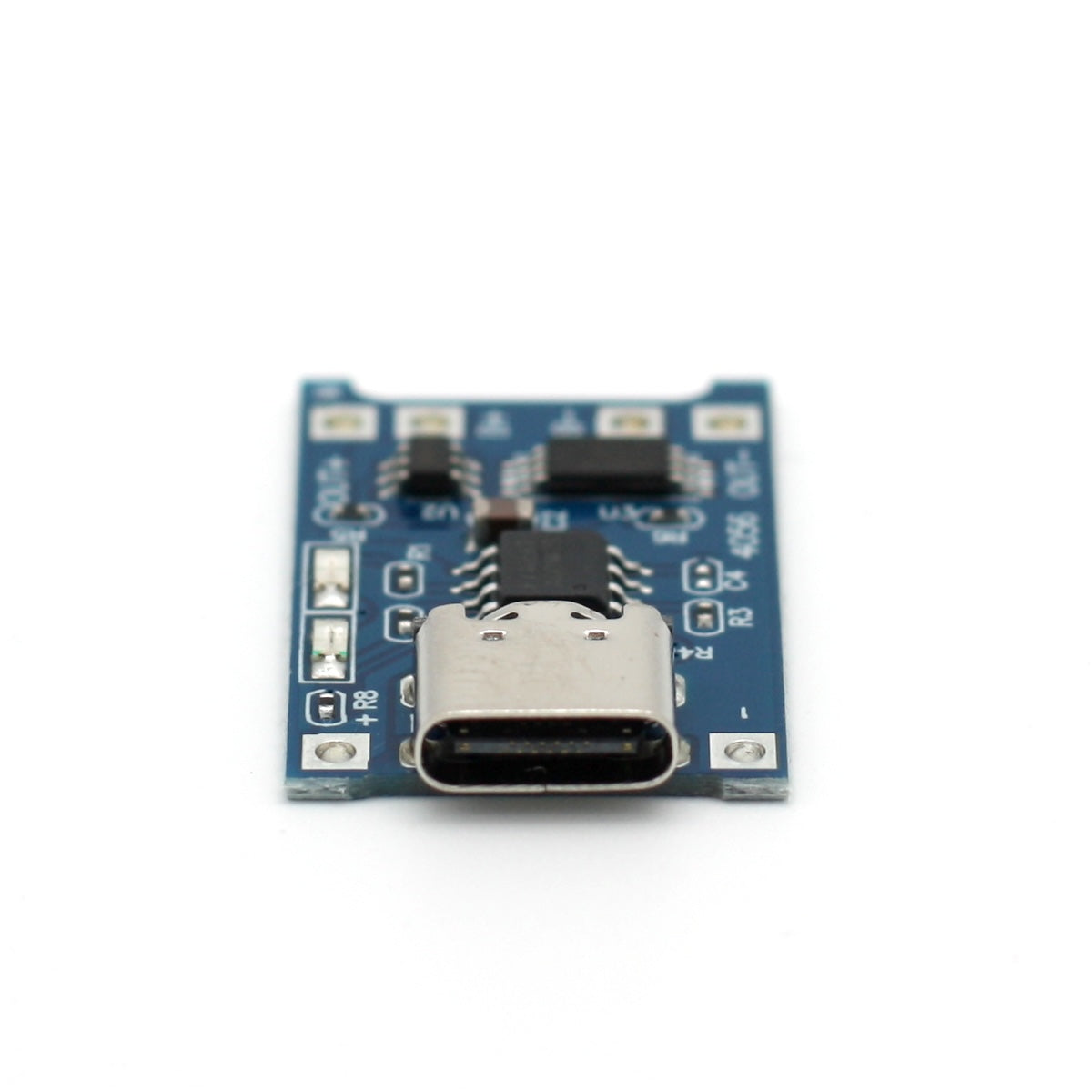

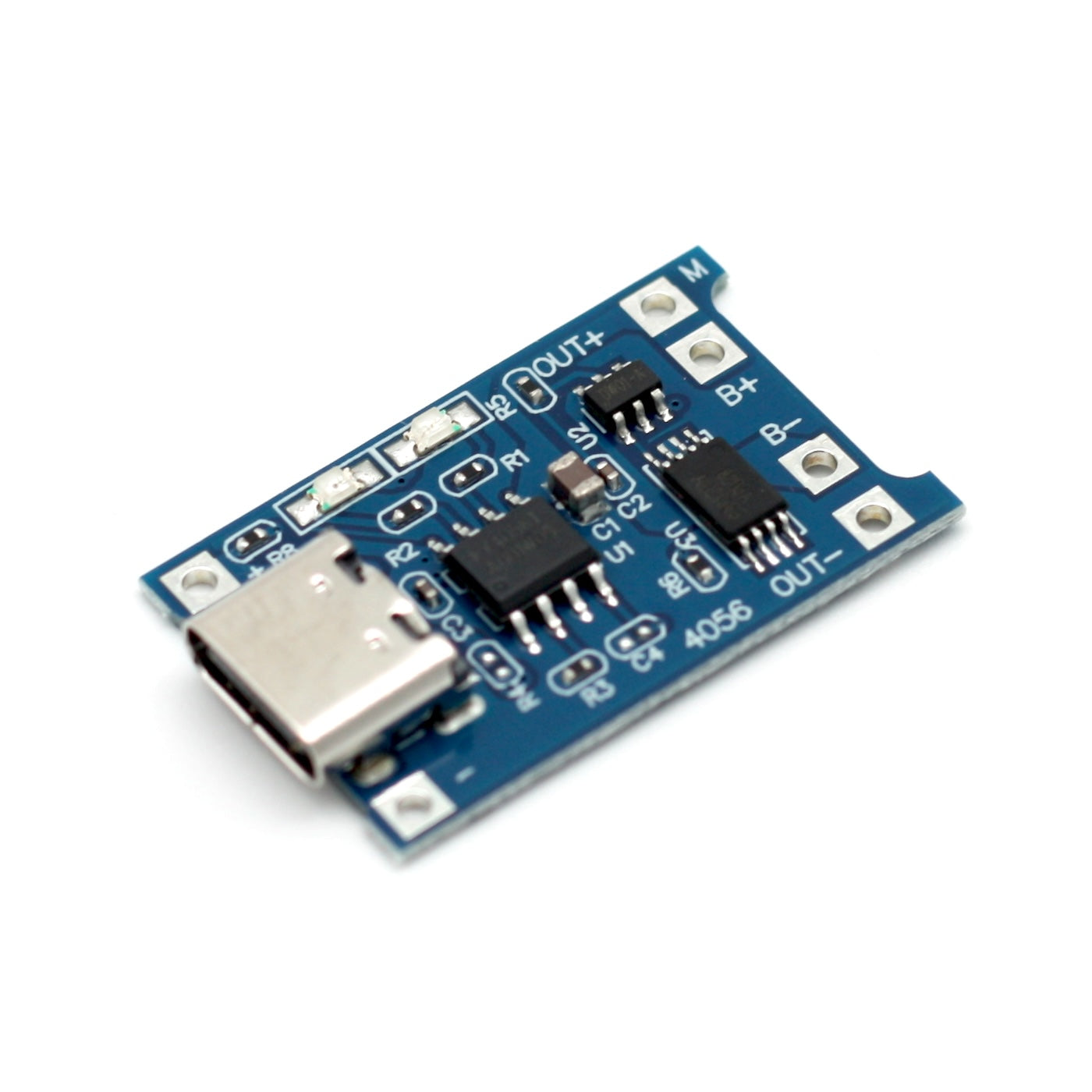

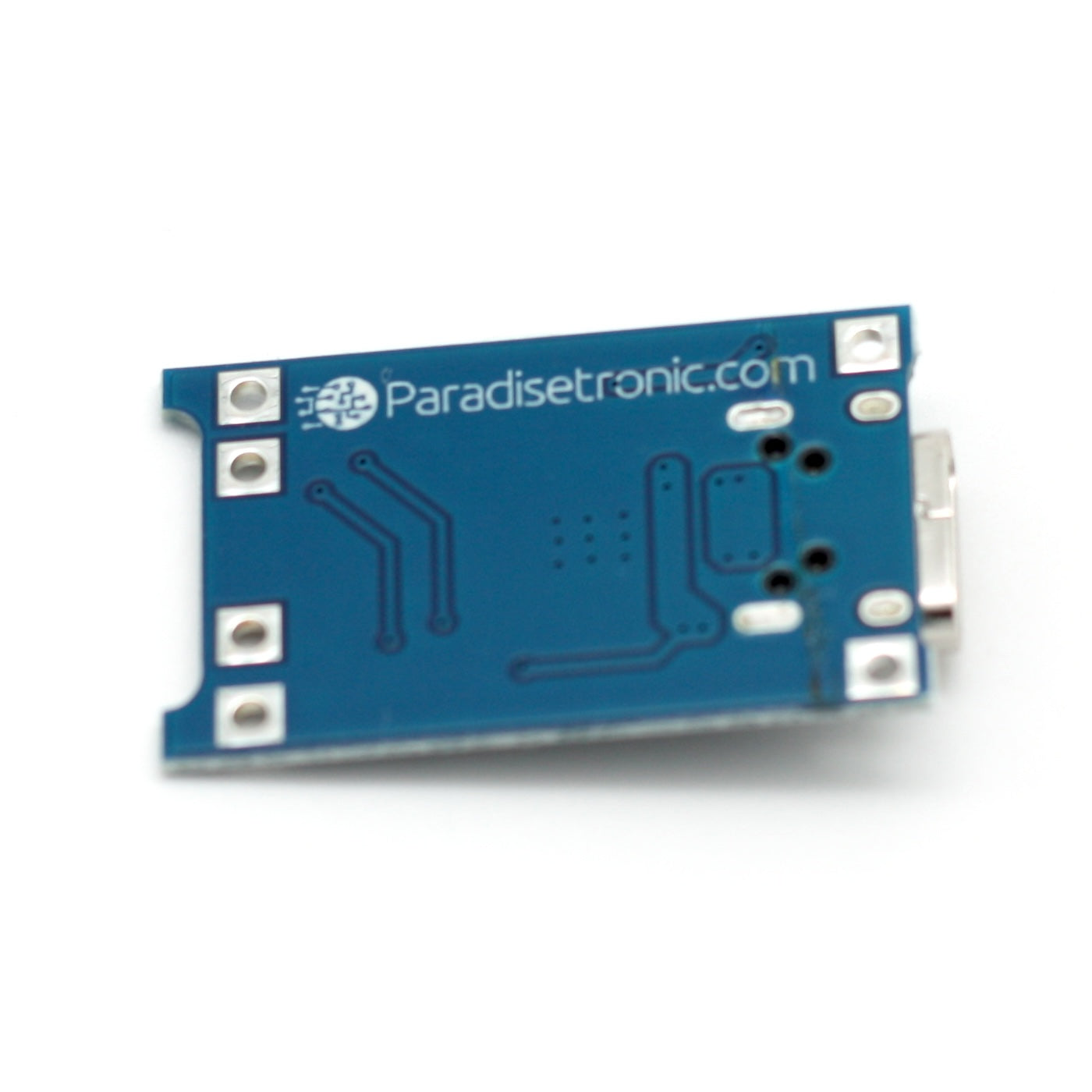

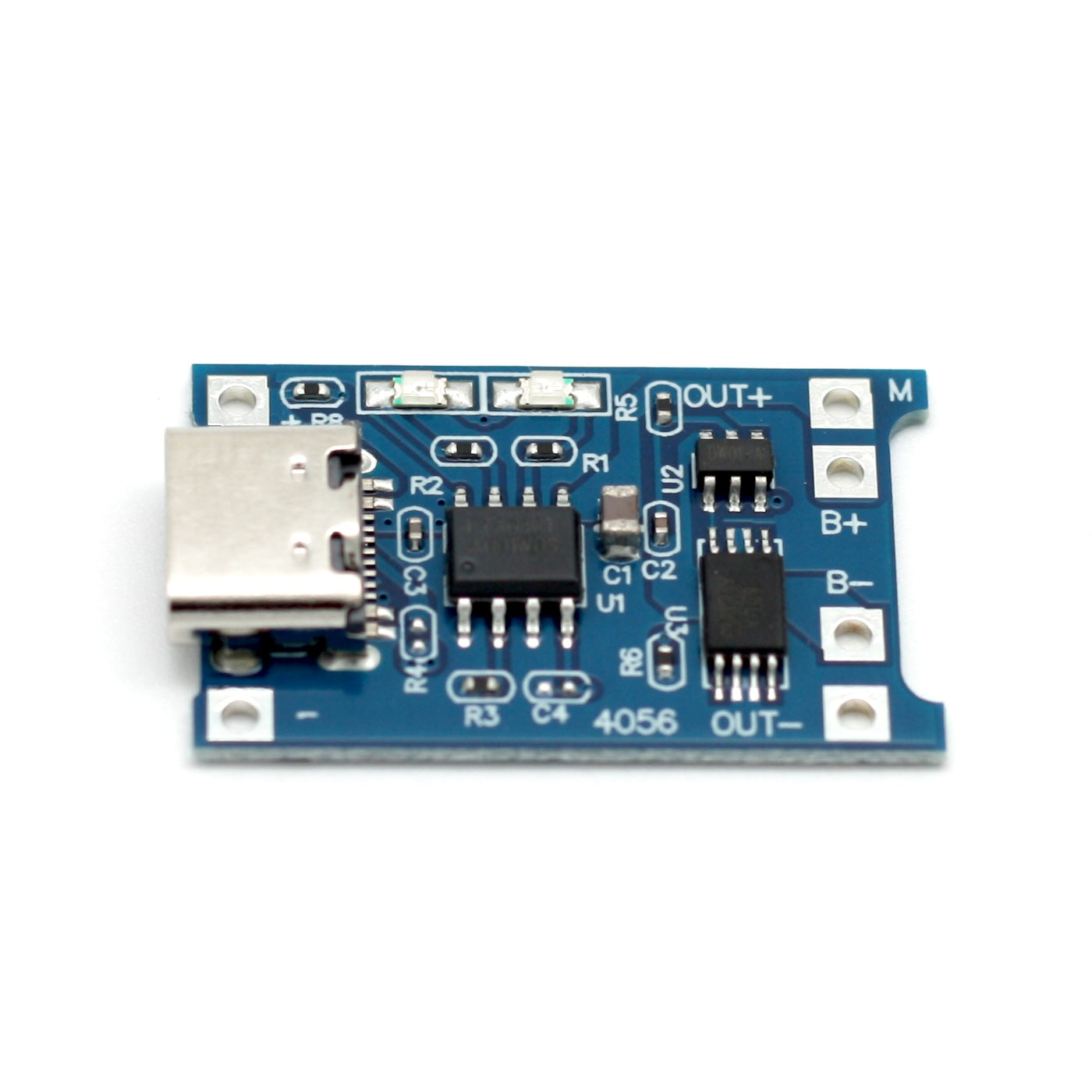

Li-Ion Charging Module TP4056 with DW01 Battery Protection IC, 1A, USB-C

Li-Ion Charging Module TP4056 with DW01 Battery Protection IC, 1A, USB-C

Regular price €4,99 EUR
Regular price Sale price €4,99 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

This charger is made for single cell Li-ion batteries which are charged with 4.2 V. The TP4056 chipset is a constant-voltage/constant-current charger.
The on-board DW01 battery protection IC disconnects the battery on overcurrent, overcharge and on overdischarge.
A full charge is detected as soon as the current drops below 100 mA. The charging is automatically terminated by the TP4056.

Specification:

Input Voltage: up to 8 V max.
Charging Current: ca. 1 A
Display: 2 LEDs
Connection: Connection Pads for Input/Output Voltages and Battery, USB-C
Dimensions: 26.3 mm x 17.1 mm x 5.6 mm
