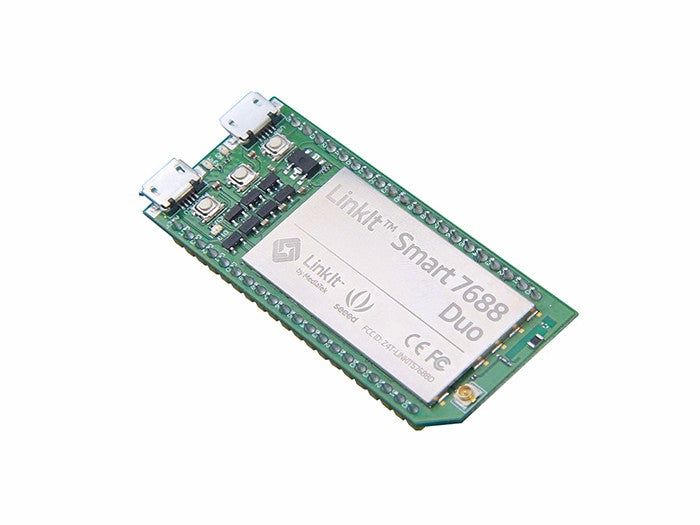

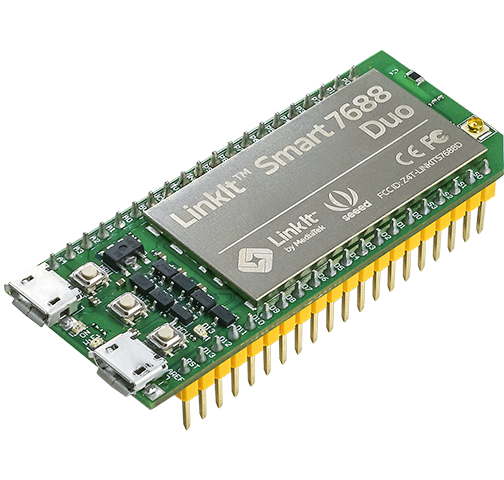

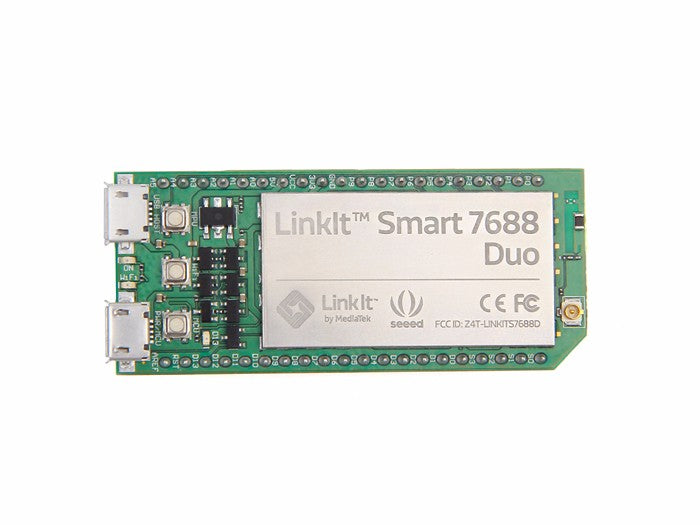

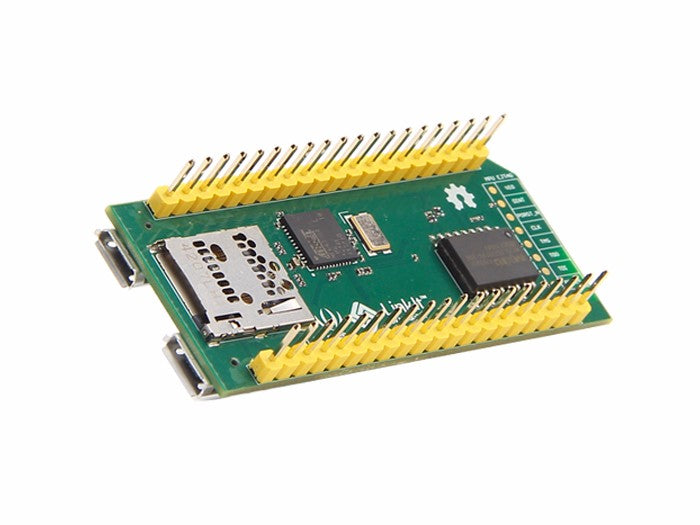

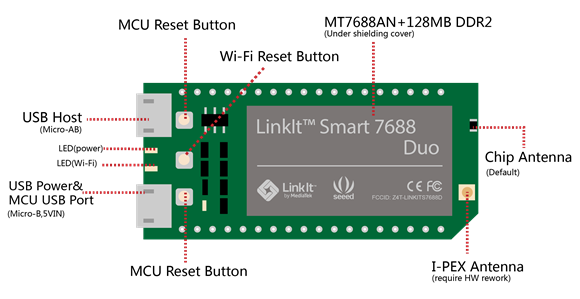

LinkIt Smart 7688 Duo with MT7688 and ATmega32U4
LinkIt Smart 7688 Duo with MT7688 and ATmega32U4
Couldn't load pickup availability
LinkIt Smart 7688 Duo is an open development board compatible with Arduino Yún sketches, based on the OpenWrt Linux distribution, MT7688 and ATmega32u4. The board is designed especially to enable the prototyping of Rich IoT Application for smart house or office. Since it is compatible with Arduino, this allows you to use different features from Arduino Yún and LinkIt Smart 7688 Duo, which will help you build rich applications based on various, robust and compiled Arduino Yún sketches. The board offers you the memory and packet storage to enable robust video processing. The platform also offers options to create device applications in Python, Node.js and C programming language.
LinkIt Smart 7688 duo is a co-design product by Seeed Studio and MediaTek. It brings together the parties' knowledge in open hardware and industry leading reference designs for IoT devices to create this powerful development board.
LinkIt Smart 7688 duo is fully supported on the MediaTek Labs site: check out the LinkIt section and register here to download the SDK, participate in the Forums, and more.
Features
580 MHz MIPS CPU
Single input single output(1T1R) Wi-Fi 802.11 b/g/n (2.4G)
Pin-out for GPIO, I2C, SPI, SPIS, UART, PWM and Ethernet Port
32MB Flash and 128MB DDR2 RAM
USB host
Micro SD slot
Support for Arduino (ATmega32U4)
Specifications
| Category | Feature | Specification |
|---|---|---|
| MPU | Chipset | MT7688AN |
| Core | MIPS24KEc | |
| Clock speed | 580MHz | |
| Working voltage | 3.3V | |
| MCU | Chipset | ATmega32U4 |
| Core | Atmel AVR | |
| Clock speed | 8MHz | |
| Working voltage | 3.3V | |
| PCB Size | Dimensions | 60.8 x 26 mm |
| Memory | Flash | 32MB |
| RAM | 128MB DDR2 | |
| Power Source | USB Power | 5V (USB micro-B) |
| VCC | 3.3V (Pin Breakout) | |
| GPIO | Pin Count | 3 (MT7688AN) 24 (ATmega32U4) |
| Voltage | 3.3v | |
| PWM | Pin Count | 8 (ATmega32U4) |
| Voltage | 3.3v | |
| Max. Resolution | 16 bits (customizable) | |
| Maximum Frequency@Resolution | 31.25kHz@8-bit, Timer 0 (4 sets) | |
| 2MHz@2-bit,122Hz@16-bit, Timer 1 & 3 (4 sets) | ||
| 187.5kHz@8-bit, 46.875kHz@10-bit, Timer 4 (6 sets) | ||
| ADC | Pin Count | 12 (ATmega32U4) |
| Voltage | 3.3v | |
| External Interrupts | Pin Count | 8 (ATmega32U4) |
| SPI/SPIS | Set count | 1 (ATmega32U4) |
| Pin numbers | S0, S1, S2, S3 | |
| Max. Speed | 4 MHz | |
| I2C | Set count | 1 |
| Pin numbers | D2, D3 | |
| Speed | 400K | |
| UART Lite | Set count | 1 (ATmega32U4) |
| 1 (MT7688AN) | ||
| Pin numbers | P8, P9 (MT7688AN) | |
| D0, D1 (ATmega32U4) | ||
| Max. Speed | 0.5 Mbps (MT7688AN) | |
| 0.5 Mbps (ATmega32U4) | ||
| USB Host | Set count | 1 (MT7688AN) |
| Pin numbers | P6, P7 | |
| Connector type | Micro-AB | |
| Communication | Wi-Fi | 1T1R 802.11 b/g/n (2.4G) |
| Ethernet | 1-port 10/100 FE PHY | |
| Pin numbers | P2, P3, P4, P5 | |
| User Storage | SD Card | Micro SD SDXC |
