Seeed Studio Grove Base Shield for XIAO with embedded battery management chip
Seeed Studio Grove Base Shield for XIAO with embedded battery management chip
Regular price
€9,95 EUR
Regular price
Sale price
€9,95 EUR
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- On-board Lithium Battery Charging and Management Function so you can easily power your Seeed Studio XIAO with lithium 3.7V battery and recharge it
- Grove connectors (Grove IIC*2, Grove UART*1), all 14 GPIO led out
- Compact and Breakable Design
- SPI-Flash Bonding Pad Reserved
- On-board Power Switch and Charging Status Indicator Light
It acts as a bridge for Seeed Studio XIAO and Seeed's Grove system, which provides 300+ of different Grove modules including sensor, actuator, communication, display, etc. No more jumper wires and soldering work, you could enjoy creating more projects with Seeed Studio XIAO easily and quickly.

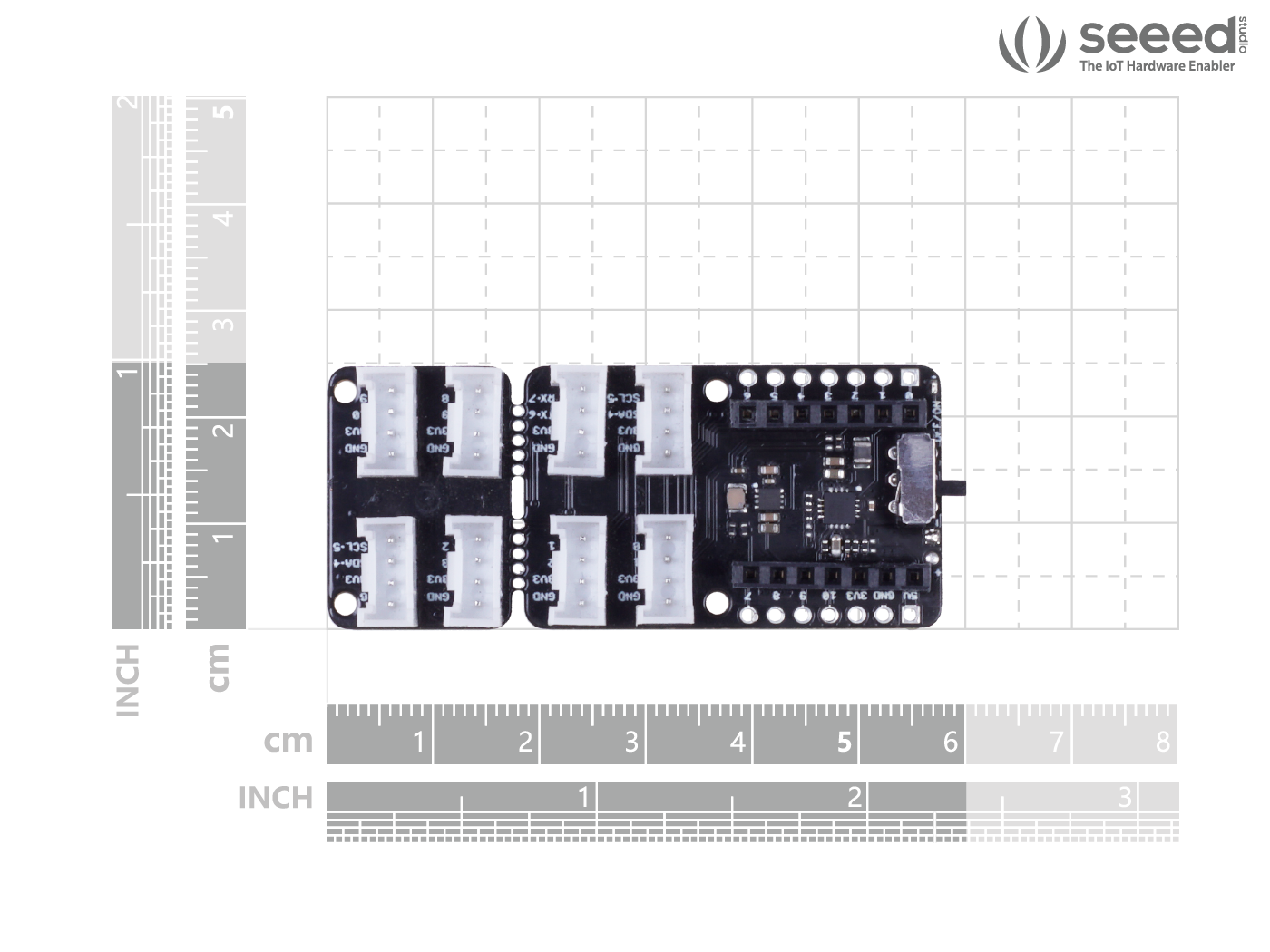

You could even break the board through the onboard PCB stamp holds according to your actual needs of the project (only 25*39mm in dimension after break-off), making it smaller than smaller.
