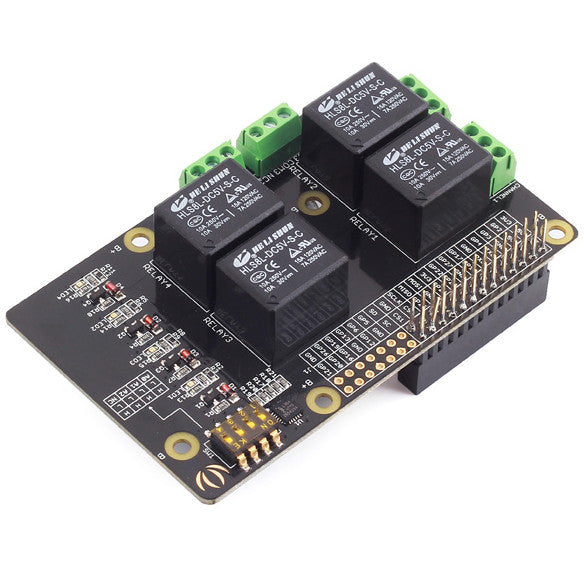

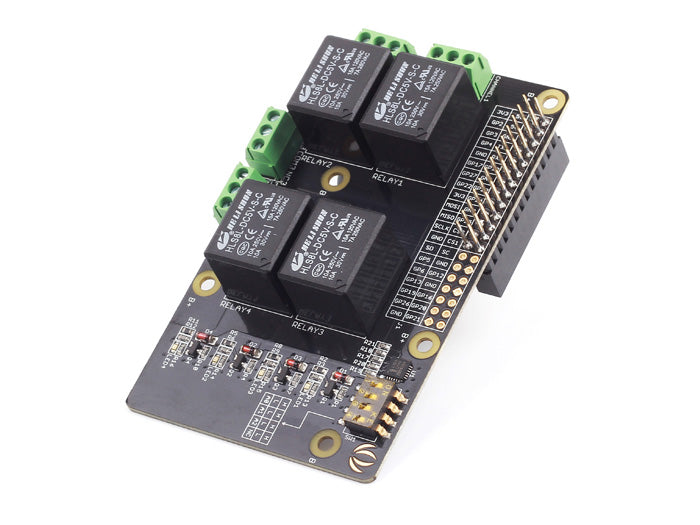

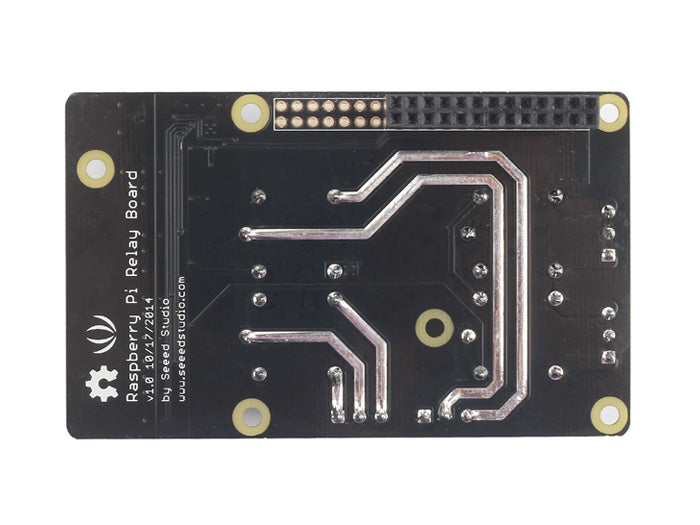

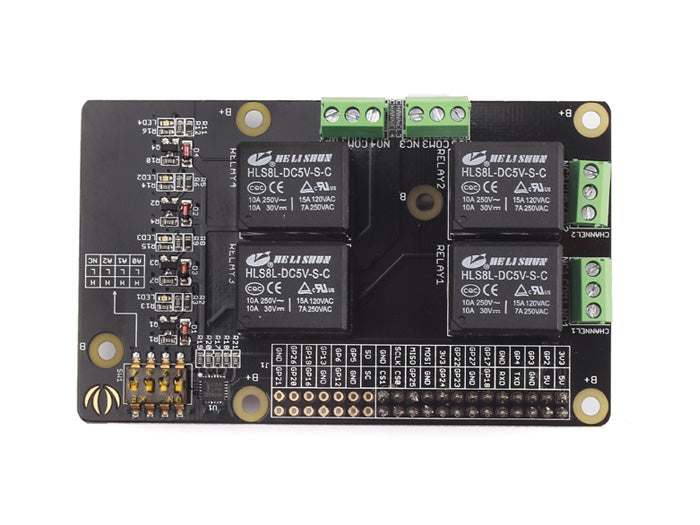

Seeed Studio Relay Board v1.0 for Raspberry Pi

The Relay Shield utilizes four high quality relays and provides NO/NC interfaces that control the load of high current. Which means it could be a nice solution for controlling devices that couldn’t be directly controlled by IIC bus. Standardized shield form factor enables smoothly connection with the Raspberry Pi . The shield also has four dynamic indicators show the on/off state of each relay.

Please visit Seeed Studio's learn section for more information on how to set up your Raspberry Pi.

Features

• Raspberry Pi compatible
• Interface: I2C, Three hardware SW1 (1, 2, 3) select the fixed I2C-bus address
• Relay screw terminals
• Standardized shield shape and design
• LED working status indicators for each relay
• COM, NO (Normally Open), and NC (Normally Closed) relay pins for each relay
• High quality relays

Specification
