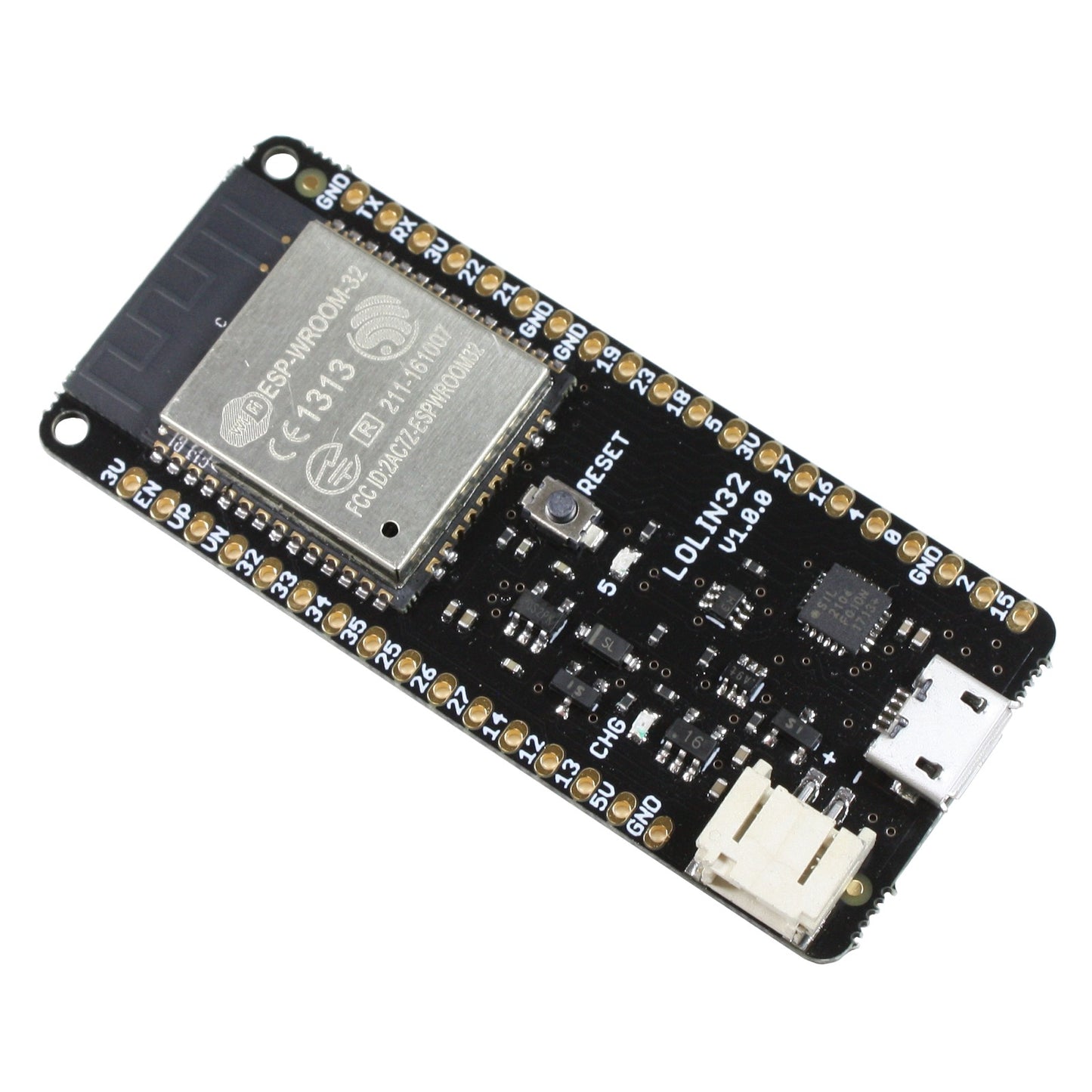

LOLIN32 with ESP32, WiFi, Bluetooth / BLE

The LOLIN32 board is based on the ESP-WROOM-32 module and adds a LiIon/LiPo battery charging circuit, an USB to serial converter IC and an USB port. Solder the headers to the PCB and use it directly on any breadboard.

The ESP8266 is great for small projects where you don't need so many I/Os, processing power or interfaces. Espressif listened to their customers and put a lot more into the new ESP32 WiFi-SoC:

• 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
• Integrated 520 KB SRAM
• Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
• Integrated dual mode Bluetooth (classic and BLE)
• 4 MByte flash include in the WROOM32 module
• On-board PCB antenna
• Ultra-low noise analog amplifier
• Hall sensor
• 10x capacitive touch interface
• 32 kHz crystal oscillator
• 26 x Digital I/O pins
• 12 x ADC input channels
• 2 x I2S Audio
• 2 x DAC
• PWM/timer input/output available on every GPIO pin
• OpenOCD debug interface with 32 kB TRAX buffer
• SDIO master/slave 50 MHz
• SD-card interface support
